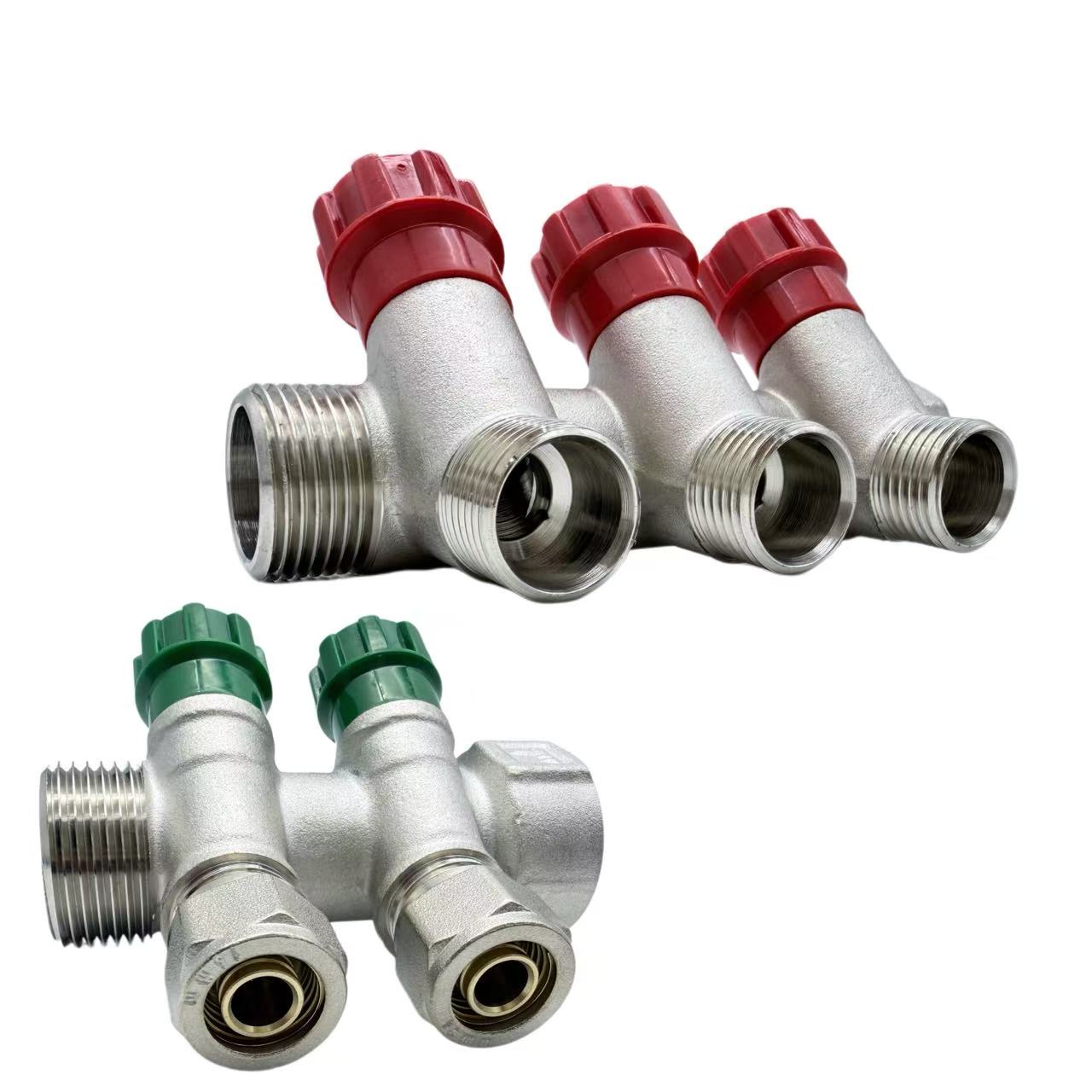

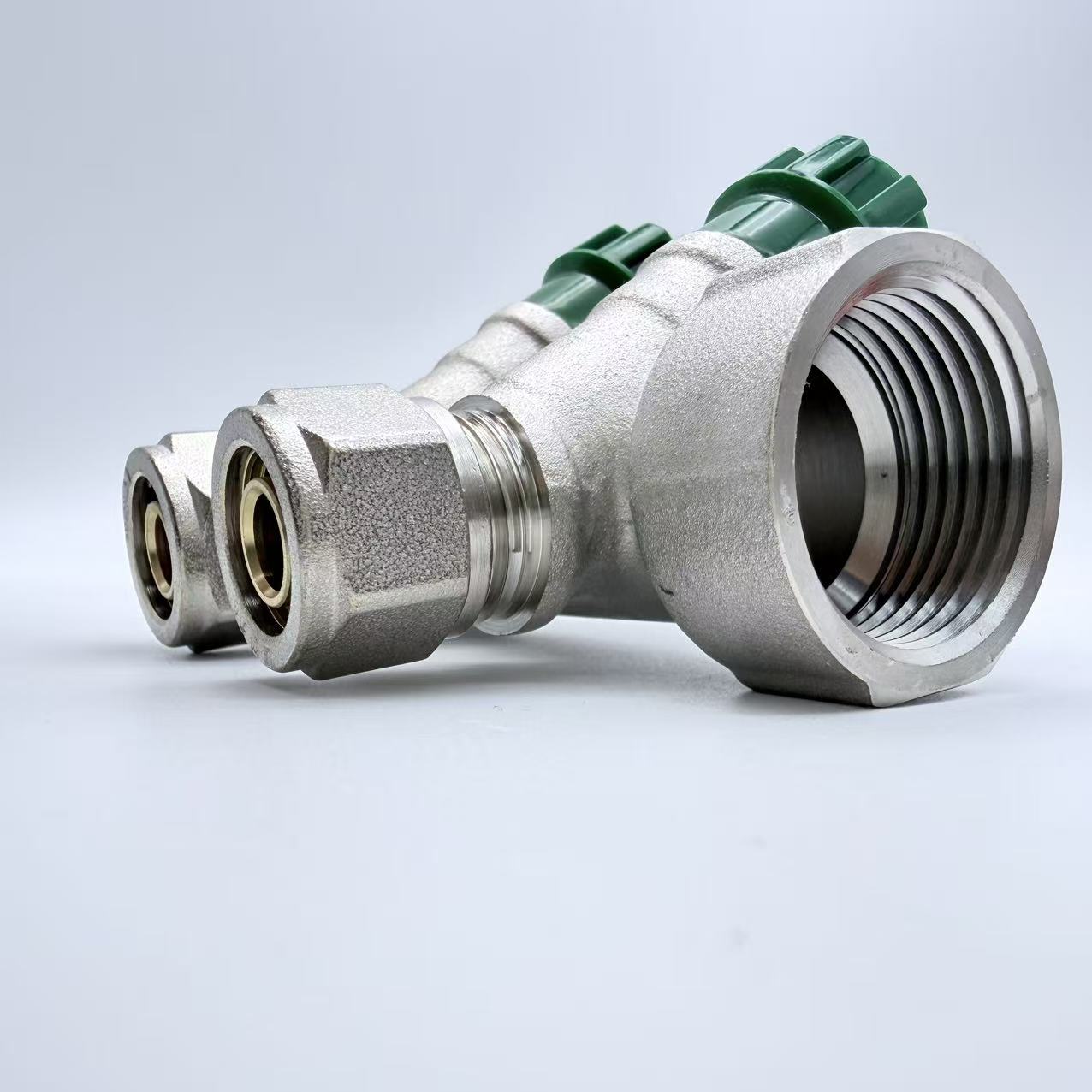

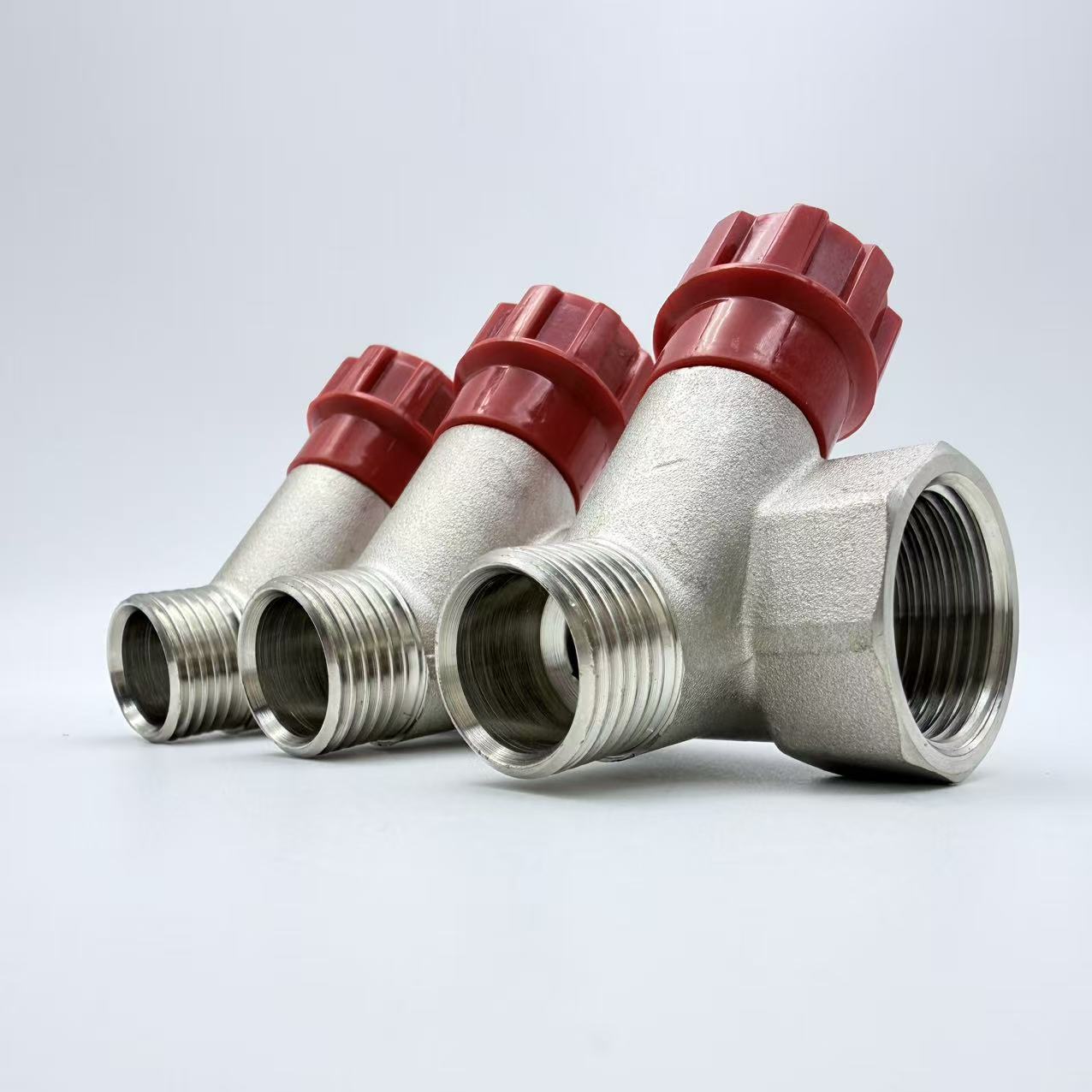

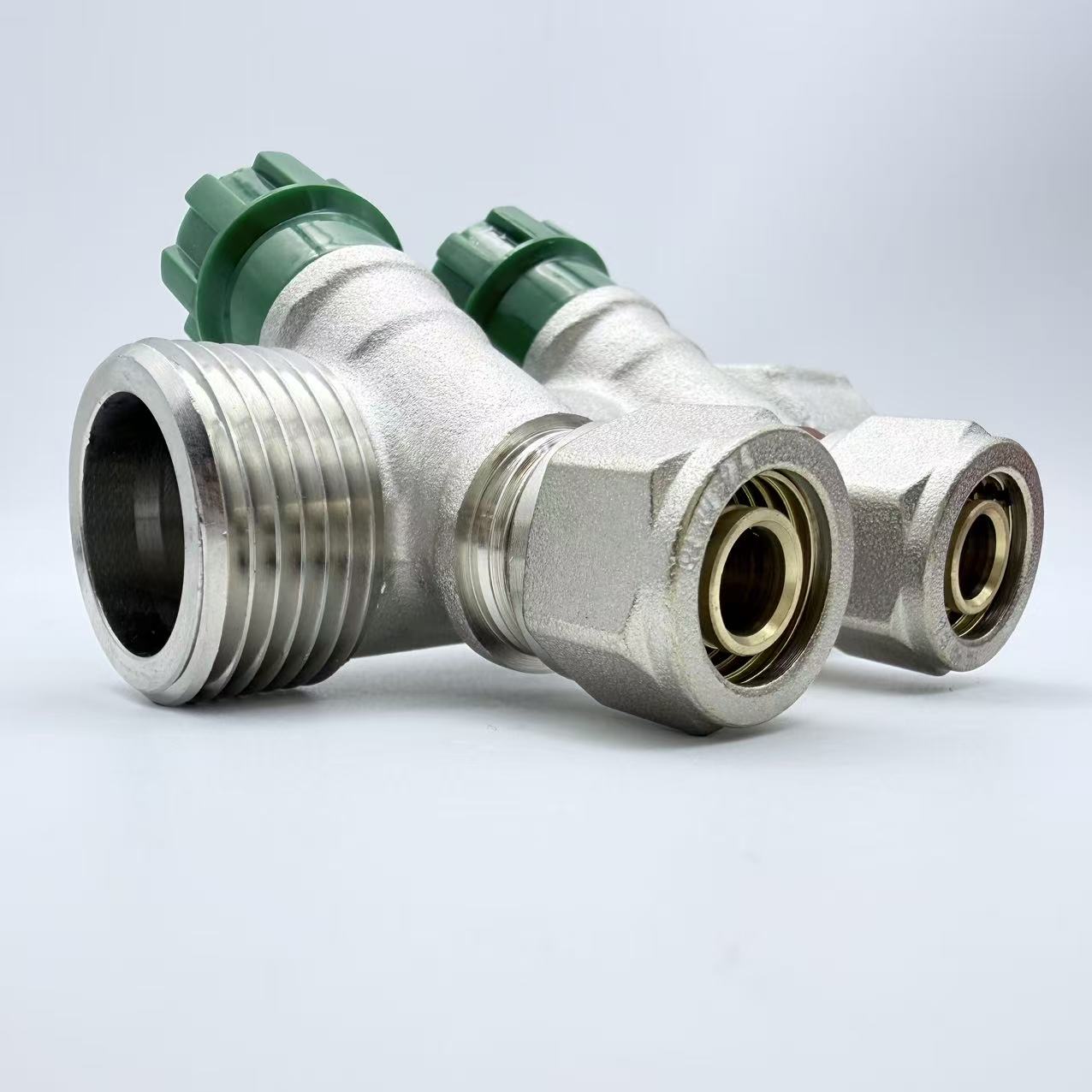

45-Degree Manifold rau Underfloor Cua sov Systems
45-Degree Manifold rau Underfloor Heating Systems yog ib chav faib khoom tshwj xeeb tsim rau cov cua sov hauv qab. Featuring inlet thiab qhov hluav taws xob ports angled ntawm 45 degrees txheeb ze rau lub ntsiab pipeline, nws optimizes piping layouts, minimizes txaus tsis kam, thiab pab yooj yim routing thiab kev twb kev txuas nyob rau hauv confined qhov chaw los yog installation nyob ze rau phab ntsa. Tsim nyob rau hauv Suav teb los ntawm Shenchi, 45 ° manifold no yog crafted los ntawm cov ntaub ntawv zoo-xws li tooj dag, 304 stainless hlau, thiab 316L stainless hlau-thiab koom nrog ib tug optimized 45 ° txaus channel tsim los xyuas kom meej meej txaus faib thiab ruaj khov kub. Muaj los ntawm tus kws tshaj lij kev lag luam rau kev yuav khoom ntau, nws yog qhov zoo tagnrho rau cov cua sov hauv tsev.
Shenchi 45-Degree Manifold rau Underfloor Heating Systems txais yuav cov txheej txheem dej ntws los ua kom muaj kev ruaj ntseg ntawm cov cua sov xov xwm thiab kev sib raug zoo nrog ntau yam hauv pem teb cua sov kav. Cov khoom muaj qhov kub thiab txias tsis kam, tswj kev ua haujlwm ruaj khov nyob rau hauv qhov kub thiab txias. Customized daws teeb meem muaj nyob rau hauv tsev kho kom zoo nkauj, tsev lag luam, thiab centralized cua sov tej yaam num.
Khoom Specifications
| Lub npe khoom: 45-Degree Manifold rau Underfloor cua sov Systems |
Specification: (1/8 "-4") DN6-DN100 |
| Nominal Siab: PN16 |
Khoom siv lub cev: tooj dag, SUS304, SUS316L |
| Cov Qauv: ANSI, BS, DIN, ISO, JIS |
Xov: NPT, BSP, BSPT, DIN, thiab lwm yam. |
| Daim Ntawv Thov: Kev faib dej rau cov cua sov hauv qab; dej kub thiab dej txias tswj kev ncig |
Nruab nrab kub: -20 ° C txog 110 ° C (nws txawv raws li cov khoom foob) |
| Number of circuits: 2, 3, 4, 5, thiab lwm yam. |
Seals: EPDM |
| Kev sib txuas hom: Threaded kev twb kev txuas |
Cov Txheej Txheem Siv Tau: Hydronic underfloor cua sov, cua sov ncig tshuab, cua sov hauv tsev, ua lag luam / project cua sov |
| Keeb kwm: Suav teb |
Samples: Cov qauv muaj raws li qhov kev thov |
Angled Flow Channel Tsim los txhim kho cua sov ncig
Schenchi 45-Degree Manifold rau Cov Hluav Taws Xob Hluav Taws Xob yog tsim nyob rau hauv Suav teb nrog cov khoom zoo tooj liab, SUS304, thiab SUS316L. Raws li cov chaw tsim khoom lag luam, cov khoom lag luam yog tsim los rau kev faib dej hauv cov cua sov hauv qab. Lub 45 ° angled qauv optimizes dej ntws kev taw qhia, txo cov kav dej tsis kam, thiab ua kom ruaj khov dej kub thiab dej txias. Muaj nrog 2-5 circuits rau vaj tse cua sov thiab engineering tej yaam num.
PN16 Kev Ua Haujlwm Siab rau Kev Ua Haujlwm Zoo
Cov khoom nta PN16 siab ntsuam xyuas thiab precision manufacturing tshuab los txhim kho lub siab tsis kam. Nws tswj kev ua haujlwm ruaj khov hauv qhov kub ntawm -20 ℃ to 110 ℃. Schenchi 45-Degree Manifold rau Cov Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob yog nruab nrog EPDM sealing Cheebtsam txhawm rau txhim kho kev sib txuas sealing thiab txo cov kev pheej hmoo ntawm kev xau. Raws li ib tug neeg muag khoom nyob rau hauv Tuam Tshoj, peb muab cov ncauj lus kom ntxaws cov npe thiab cov kev pab cuam yuav khoom nrog cov nqi hluav taws xob ua haujlwm siab.
Multi-standard Compatibility rau Flexible Installation
Schenchi 45-Degree Manifold rau Underfloor Heating Systems txhawb ANSI, BS, DIN, ISO, thiab JIS cov qauv. Cov kev xaiv xov muaj xws li NPT, BSP, BSPT, thiab DIN specifications rau compatibility nrog txawv installation systems. Lub threaded kev twb kev txuas tsim muab ib qho yooj yim thiab txhim khu kev qha installation. Nrog rau kev tiv thaiv corrosion, nws yog qhov tsim nyog rau cov dej hauv pem teb cua sov, cua sov ncig tshuab, thiab kev tsim kho cov haujlwm. Factory-direct supply yog muaj rau kev koom tes mus ntev.
Stable Supply Chain nrog Customized Solutions
Nrog rau kev tsim khoom thiab kev ua lag luam, Schenchi muab cov kev pabcuam ntau rau 45-Degree Manifold rau Cov Cuab Yeej Hluav Taws Xob, suav nrog kev xaiv cov khoom siv, kev hloov kho tshwj xeeb, thiab cov qauv tsim raws li cov neeg siv khoom xav tau. Npog DN6-DN100 qhov ntau thiab tsawg, cov khoom tsim nyog rau ntau lub raj xa dej. Nrog rau tus nqi tsim nyog thiab ruaj khov zoo, nws muaj cov kev daws teeb meem txhim khu kev qha rau cov tuam txhab kho kom zoo nkauj, cov neeg cog lus engineering, thiab cov neeg yuav khoom txawv teb chaws.
