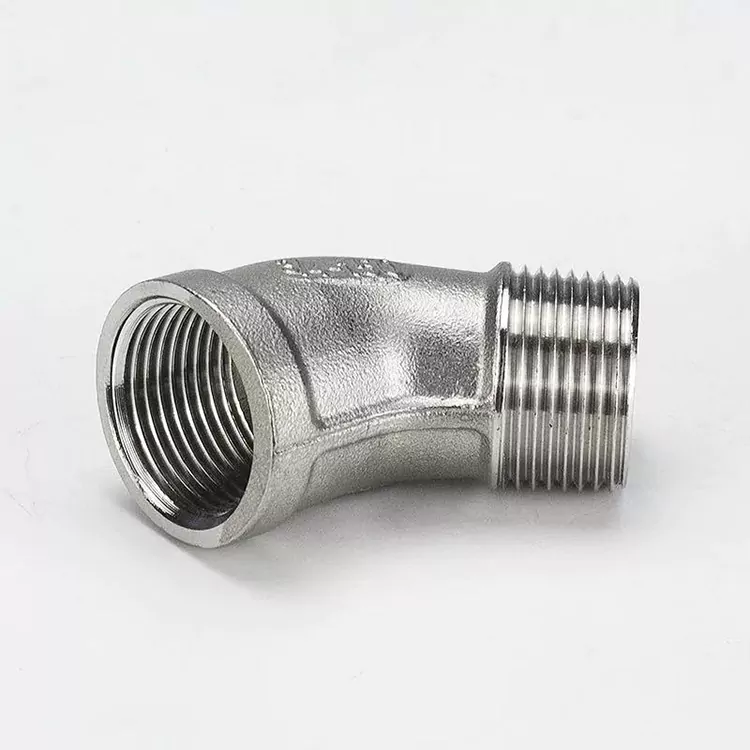

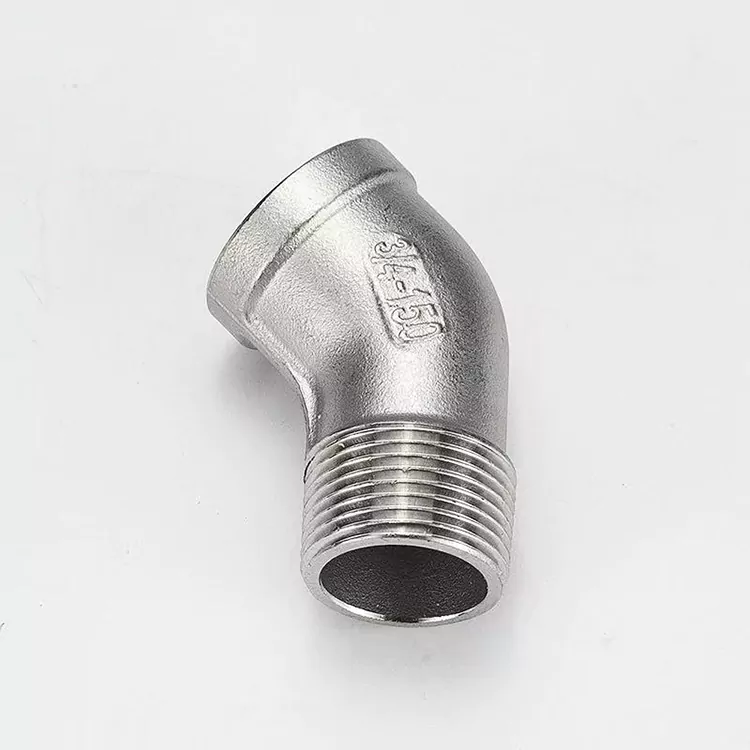

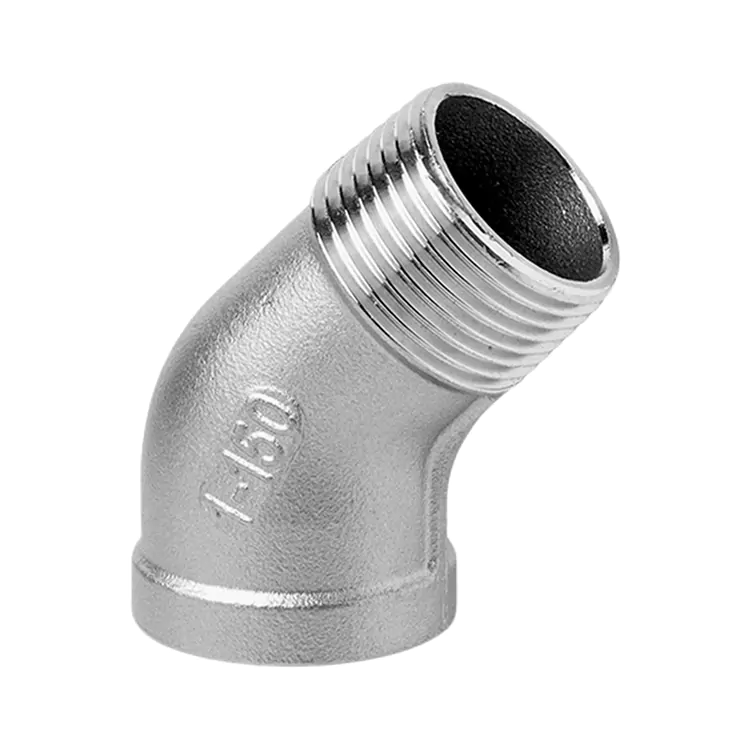

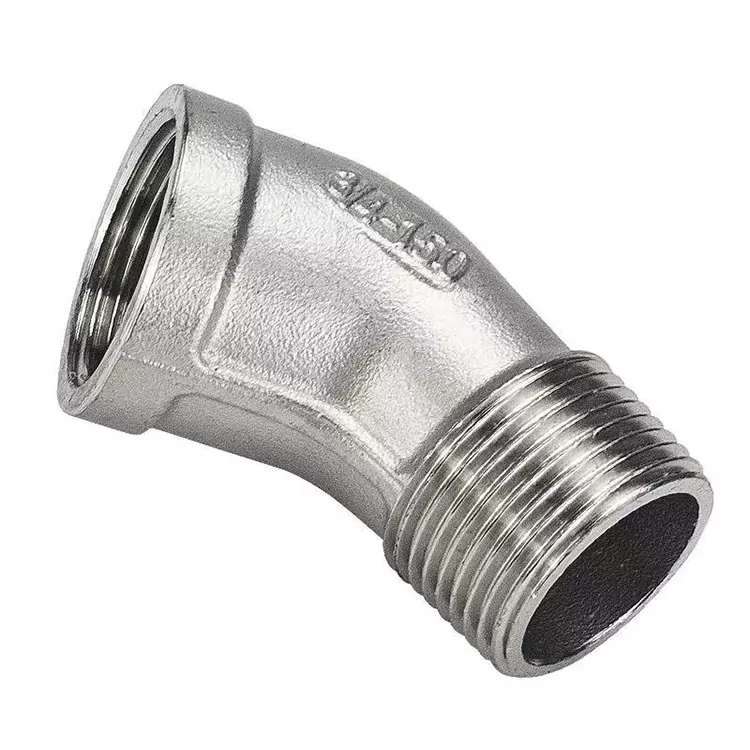

45 Degree Street Luj tshib

Brass vs Stainless hlau Options

Shenchi qhov zoo 45 Degree Txoj Kev Luj Tshib muaj nyob rau hauv ob qho tib si tooj dag thiab stainless hlau cov ntaub ntawv kom tau raws li cov kev ua haujlwm sib txawv.

Brass version:
Ua los ntawm high-zoo lub teb chaws tus qauv tooj dag nrog 57% -60% tooj liab cov ntsiab lus. Nws muaj cov thermal conductivity zoo, siab machining precision, thiab xaiv chrome-plated lossis polished tiav rau qhov zoo nkauj. Haum rau cov kav dej, lub tshuab roj, kev siv huv huv, thiab siv lub teeb coj mus muag. Kev khiav hauj lwm kub ntawm -20 ° C mus rau 110 ° C. Nws muab zoo corrosion kuj thiab nqi efficiency.

Stainless hlau version:
Ua los ntawm 304 los yog 316L stainless hlau rau superior corrosion kuj. Qib 316L muaj molybdenum, ua rau nws zoo tagnrho rau cov dej hiav txwv, kev ua tshuaj, zaub mov, thiab chaw ua tshuaj. Nws txhawb ntau qhov kub ntawm -20 ° C txog 120 ° C thiab muaj zog dua, haum rau kev kub siab, kub kub, thiab hnyav hnyav.

Ob lub versions yog tsim los ntawm precision one-piece forging. Xov xov raug nruj me ntsis raws li NPT / BSPT thoob ntiaj teb cov qauv. 45 ° tsim tau zoo txo ​​cov dej tsis kam. Cov neeg siv khoom tuaj yeem xaiv cov ntaub ntawv raws li hom xov xwm, siab, kub, thiab peev nyiaj.

Khoom Parameters

Kev sib haum xeeb

45 Degree Txoj Kev Luj Tshib yog tsim los nrog tag nrho kev sib raug zoo rau ntau yam ntawm cov kav dej, li qub, thiab cov khoom siv.

· Cov xov sib raug zoo: Txhawb NPT, BSPT, BSPP cov qauv thoob ntiaj teb rau cov kav dej thoob ntiaj teb

· Loj compatibility: 1/8 "mus rau 4", sib piv cov kav dej, li qub, twj, thiab cov twj paj nruag

· Cov khoom siv sib xws: Brass rau tooj liab, galvanized, thiab cov kav dej yas; stainless hlau tiv thaiv galvanic corrosion nyob rau hauv stainless systems

· Sealing compatibility: Ua haujlwm nrog PTFE daim kab xev, xov sealant, thiab O-rings rau kev txhim kho yooj yim

· System kev koom ua ke: Tau tshaj tees, luj tshib, thiab fittings rau ua tiav piping systems

· Retrofit compatibility: Retrofit hloov pauv rau cov txheej txheem uas twb muaj lawm hauv cov haujlwm kho dua tshiab

Kev sib raug zoo zoo ua kom 45 Degree Txoj Kev Luj Tshib tuaj yeem ua ke tau yooj yim rau hauv ob qho tib si tshiab thiab retrofit piping systems.

Kev pab txhawb nqa

Raws li tus kws tshaj lij exporter ntawm 45 Degree Txoj Kev Luj Tshib, Shenchi muab kev txhawb nqa kev ua haujlwm puv sijhawm:

· Kev taw qhia kev xaiv: Kev pab raws li xov xwm, siab, kub, thiab kev teeb tsa

· Daim duab pom zoo: CAD/3D qauv txhawb rau kev txiav txim

· Cov qauv kuaj: Cov qauv ua ntej tsim khoom muaj rau kev txheeb xyuas qhov ua tau zoo

· Kev pab daws teeb meem: Kev pab cuam chaw taws teeb rau kev teeb tsa lossis kev siv teeb meem

· Certification support: Cov ntaub ntawv qhia, cov ntaub ntawv tshuaj xyuas, thiab daim ntawv pov thawj keeb kwm rau kev tshem tawm

Peb pab pawg kws tshaj lij ua kom txhua tus neeg siv khoom tau txais tsis yog cov khoom lag luam nkaus xwb tab sis ua tiav kev txhawb nqa engineering.

Core Performance Advantages

Cov txiaj ntsig tseem ceeb ntawm 45 Degree Txoj Kev Luj Tshib yog nyob rau hauv nws qhov kev sib koom ua ke ua ke thiab qis-kawg-kuj tsim:

· Dual-xaiv tsim: Ib tug poj niam kawg thiab ib tug txiv neej kawg tso cai rau ob qho tib si kev hloov pauv thiab xov hloov hauv ib qho haum

· 45° low-angle flow: Reduces flow resistance los ntawm kwv yees li 30% piv rau 90° luj tshib

· Smooth internal flow path: Tsis muaj burrs lossis qhov chaw tuag, ua kom cov kua dej ruaj khov

· Precision threading: Ua raws li cov qauv thoob ntiaj teb kom nruj thiab txhim khu kev qha sealing

· High pressure & temperature resistance: Stainless steel versions ua tau zoo nyob rau hauv huab cua

· Reusable kev twb kev txuas: Threaded tsim txhawb rov qab disassembly thiab tu rau kev hloov kho lub cev
