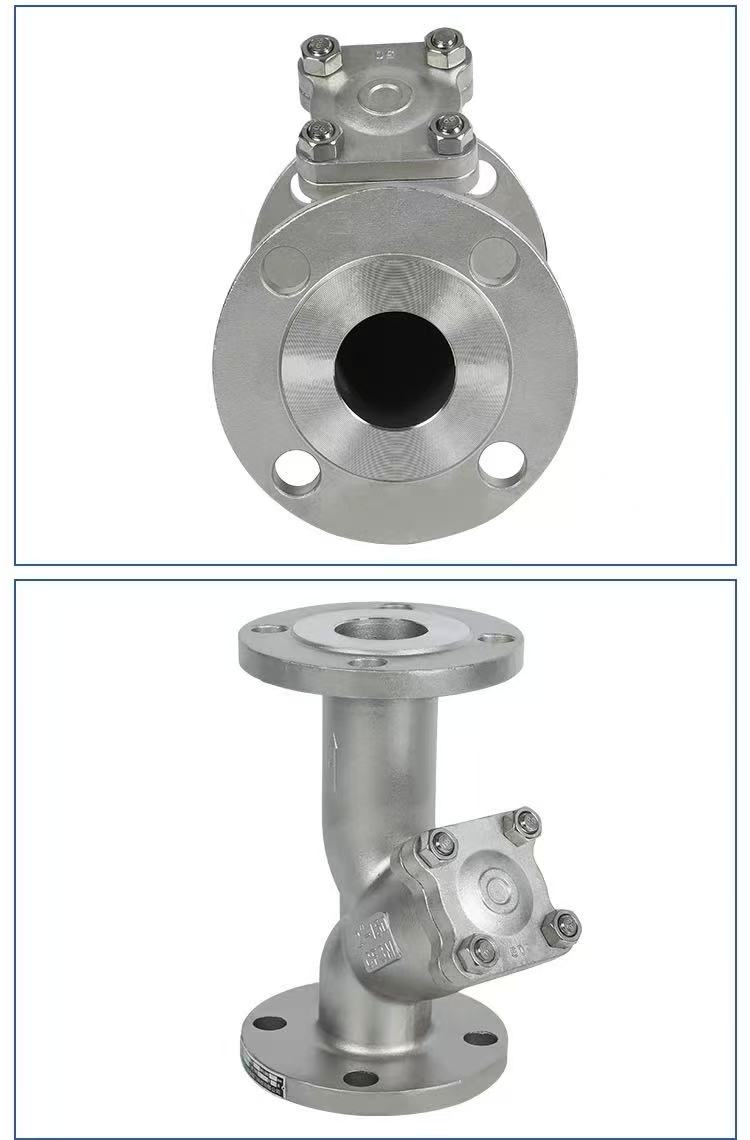

American Standard Flange Y-hom lim

Txoj Cai Ua Haujlwm

Shenchi Hoobkas kev koom ua ke American Standard Flange Y-type Filter ua haujlwm ntawm lub hauv paus ntsiab lus ntawm lim tshuaj ntsuam cuam tshuam. Qhov nruab nrab nkag mus rau hauv vaj tse los ntawm qhov kawg inlet thiab ntws los ntawm cov ntxaij lim dej hauv cov qauv Y-shaped. Cov khoom impurities raug thaiv hauv cov ntxaij lim dej, thaum huv nruab nrab hla dhau thiab tawm ntawm qhov hluav taws xob kawg. Tag nrho cheeb tsam ntawm cov ntxaij lim dej yog 3-4 zaug ntawm qhov chaw hla ntawm cov yeeb nkab, uas ua rau tsis muaj zog thiab khiav ceev. Txhawm rau kom cov dej ntws tawm, tshem tawm cov ntsaws hauv qab los yog tshem tawm lub flange npog, tshem tawm cov ntxaij lim dej, ntxuav nws, thiab tom qab ntawd rov nruab nws. Lub cev tseem ceeb yog ua los ntawm WCB, SUS304 (CF8), lossis SUS316L (CF3M) cov ntaub ntawv, siv cov txheej txheem kev sib xyaw ua ke, uas ua rau lub tsev tsis muaj seamless thiab txhim khu kev ntseeg siab. Shenchi cov khoom yog tsim rau impurity pom nyob rau hauv pipelines siv roj av, tshuaj, thiab dej kho industries.

Khoom Parameters

Khoom npe: American Standard Flange Y-hom lim	Specifications: (1/8"-4") DN6-DN100 Specifications: (1/8"-4") DN6-DN100
Nominal Siab: PN16	Khoom siv lub cev: WCB, SUS304 (CF8), SUS316L (CF3M)
Txuj: ANSI, BS, DIN, ISO, JIS	Kev Ua Haujlwm Kub: -20 ℃ ~ + 150 ℃ (ib txwm), mus txog + 350 ℃ (siab kub hom), qis rau -196 ℃ (tsawg kub hom)
Cov khoom siv hlau sab hauv: WCB, SUS304 (CF8), SUS316L (CF3M)	Medium Temperature: Kub kub, tsis tshua muaj kub, nruab nrab kub, ib txwm kub
Txoj kev ua haujlwm: Phau ntawv	Seals: EPDM, PPL
onnection Txoj kev: Flange kev twb kev txuas	Daim ntawv thov: dej, cua, roj, roj, kua, thiab lwm yam.
Keeb kwm: Suav teb	Qauv: Samples muaj

Cov ntsiab lus tseem ceeb rau kev txhim kho

Kev lees paub kev taw qhia, flange sib dhos thiab nruj, thiab cov kav dej txhawb nqa thiab kev tiv thaiv.

Thaum txhim kho Shenchi American Standard Flange Y-hom lim, xyuam xim rau peb lub ntsiab lus tseem ceeb: Ua ntej, paub meej tias cov kev taw qhia ntws. Lub xub ntawm lub valve lub cev yuav tsum tau ua raws li qhov nruab nrab ntws kev taw qhia, thiab cov ntxaij lim dej yuav tsum tau muab ntsia rau pem hauv ntej kom yooj yim rau impurity daws. Thib ob, xyuas kom flange sib dhos thiab zawm. Lub ntsej muag flange yuav tsum yog tib yam thiab concentric, lub gasket nyob nruab nrab, thiab cov bolts nruj diagonally nyob rau theem kom tsis txhob lub plhaub deformation. Thib peb, muab kev txhawb nqa pipeline thiab kev tiv thaiv ua ntej. Lub lim yuav tsum tsis txhob dais qhov hnyav ntawm cov kav dej; lub raj xa dej yuav tsum tau purged ua ntej installation kom tshem tawm cov khoom loj. Shenchi muab cov lus qhia ntxaws ntxaws, txhawb ODM / OEM customization, thiab lim mesh loj tuaj yeem hloov kho raws li qhov xav tau los xyuas kom meej lub sijhawm ua haujlwm ruaj khov ntawm lub lim.

Cov tshuaj lim tau zoo

Shenchi ASME tus qauv flange Y-hom lim feem ntau lim cov khoom raug tshem tawm hauv cov raj xa dej. Qhov no suav nrog: vuam slag, hlau filings, thiab xeb residue ntawm pipeline vuam; xuab zeb, av, hemp fibers, thiab sealant residue seem ntawm kev tsim kho; cov khoom me me, muaju, thiab cov sediments nqa los ntawm kev tshaj tawm nws tus kheej; xeb nplai thiab nplai tawg ntawm cov laus thiab tev sab hauv phab ntsa ntawm cov kav dej; thiab hlau shavings thiab lwm yam impurities nyob rau hauv lubricating roj. Kev pom tseeb yog xaiv tau los ntawm 50-300 mesh, nyob ntawm seb qhov yuav tsum tau ua kom huv ntawm cov xov xwm. Ua nyob rau hauv Suav teb, ASME tus qauv flange Y-hom lim yog ua los ntawm WCB, SUS304, thiab SUS316L cov ntaub ntawv, muab kev tiv thaiv corrosion thiab hloov mus rau ntau yam xov xwm.

Cov tshuaj tsis haum rau kev lim

Shenchi ASME B flange Y-hom lim tsis haum rau lim cov tshuaj hauv qab no: cov tshuaj yaj hauv nruab nrab (xws li ntsev hauv brine, acids thiab alkalis hauv kev daws); roj-dej emulsions; viscous pastes los yog colloids; fibrous mos impurities (uas yuav nkag mus los yog qhwv ib ncig ntawm lub vijtsam lim); thiab gaseous contaminants nyob rau hauv gaseous media. Rau cov xov xwm no, lwm hom lim yuav tsum raug xaiv. Thaum muag ASME B flange Y-hom lim, Shenchi yuav lees paub cov yam ntxwv ntawm cov neeg siv khoom kom tsis txhob xaiv qhov tsis raug. ASME B flange Y-hom lim nrog cov npe nqi suav nrog cov lus qhia ntxaws ntxaws.
