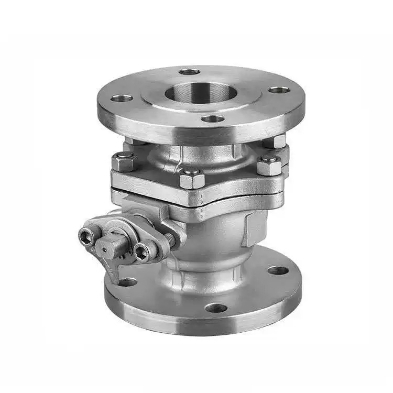

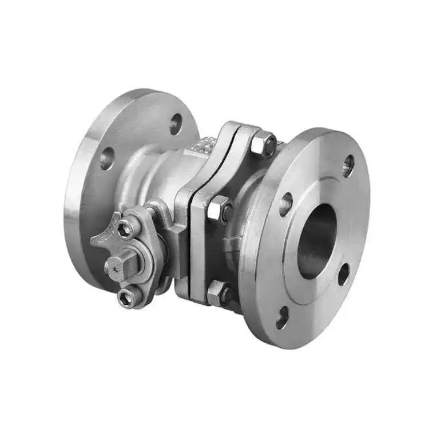

American Standard Flanged Pob Valve
Shenchi manufactures American Standard Flanged Pob Valve nyob rau hauv Suav teb, ncaj qha muab los ntawm tus neeg muag khoom. Cov yam ntxwv muaj xws li 90 ° ceev-qhib, xoom xau, hluav taws kub tsis kam, thiab cov khoom tiv thaiv zoo li qub, tsim nyog rau cov kav dej petrochemical thiab cov nkev.
Yuav zoo American Standard Flanged Pob Valve los ntawm Shenchi, cov chaw tsim khoom hauv Suav teb, uas yog lub kaw lus kaw tsim nruj raws li ANSI / API cov qauv. Nws siv lub flange kev twb kev txuas thiab lub pob tig 90 ° nyob ib ncig ntawm lub qia kom qhib thiab kaw.
Txoj cai ua haujlwm
Kev khiav tawm ntawm cov xov xwm yog tswj los ntawm kev tig lub pob 90 °.
Ib tug dhau-lub qhov nrog tib txoj kab uas hla raws li cov yeeb nkab yog nyob rau hauv nruab nrab ntawm lub pob. Thaum tus kov lossis tus actuator tig lub pob 90 ° kom txog thaum lub qhov sib npaug nrog cov yeeb nkab axis, cov xov xwm ntws tawm ywj pheej yam tsis muaj kev cuam tshuam, lub valve qhib tag nrho, thiab cov dej tsis kam yuav luag xoom. Thaum lub pob rotates lwm 90 ° kom txog thaum lub qhov taub yog perpendicular mus rau cov yeeb nkab, cov khoom kheej kheej nto tag nrho thaiv txoj kev, lub valve kaw, thiab txhim khu kev qha kaw tau tiav.
American Standard Flanged Ball Valve txais kev tsim qauv kev sib khi, tso cai rau cov xov xwm nkag los ntawm txhua qhov kev taw qhia yam tsis muaj kev txwv kev txwv. Cov ntsaws ruaj ruaj (PTFE / PPL) ua tiav xoom xoom, thaum cov ntsaws ruaj ruaj yog haum rau qhov kub thiab txias. Lub qia valve nta cov qauv tiv thaiv kom muaj kev nyab xeeb thiab kev ntseeg siab nyob rau hauv siab. Shenchi ASME tus qauv flange pob li qub yog tsim los nruj raws li API 608 tus qauv, muab kev ua haujlwm ceev thiab kaw ntom ntom, ua rau lawv zoo tagnrho kaw li qub rau ASME cov kav dej hauv cov roj, tshuaj, thiab kev lag luam roj.
Khoom Parameters
| Khoom npe: American Standard Flanged Pob Valve |
Specifications: (1/8 "-4") DN6-DN100 |
| Nominal Siab: PN16 |
Khoom siv lub cev: WCB, SUS304 (CF8), SUS316L (CF3M) Lub cev Khoom: WCB, SUS304 (CF8), SUS316L (CF3M) |
| Txuj: ANSI, BS, DIN, ISO, JIS |
Kev Ua Haujlwm Kub: -20 ℃ ~ + 150 ℃ (li qub), mus txog + 350 ℃ (siab kub), qis rau -196 ℃ (tsis kub) |
| Cov khoom siv hlau sab hauv: WCB, SUS304 (CF8), SUS316L (CF3M) |
Medium Temperature: Kub kub, tsis tshua muaj kub, nruab nrab kub, ib txwm kub |
| Txoj kev ua haujlwm: Manua |
Seals: EPDM, PPL |
| Txoj kev sib txuas: Flange txuas |
Daim ntawv thov: dej, cua, roj, roj, kua, thiab lwm yam. |
| Keeb kwm: Tuam Tshoj Keeb Kwm: Tuam Tshoj Keeb Kwm: Tuam Tshoj Keeb Kwm: Tuam Tshoj |
Qauv: Samples muaj |
Core Structure thiab Design Highlights
Shenchi's high-quality American Standard Flanged Ball Valves muaj cov qauv tseem ceeb suav nrog lub cev lub cev, pob, qia, thiab lub rooj sib khi. Lub pob tuaj yeem yog lub pob ntab ntab (DN50 thiab hauv qab) lossis lub pob ruaj khov (DN50 thiab siab dua). Lub pob qhov los ntawm qhov sib tw ntawm cov yeeb nkab sab hauv txoj kab uas hla, ua rau zero ntws tsis kam thaum qhib tag nrho. Lub qia anti-blowout qauv tiv thaiv lub qia los ntawm ya tawm nyob rau hauv siab siab. Ib qho khoom siv tiv thaiv zoo li qub ua kom muaj kev sib txuas ntawm lub pob thiab qia, tiv thaiv hluav taws xob zoo li qub. Rau ASME flange pob li qub nrog cov lus hais, Shenchi muab cov lus qhia ntxaws ntxaws los pab txhawb kev xaiv cov qauv raug thiab suav nyiaj txiag rau cov neeg siv khoom.
