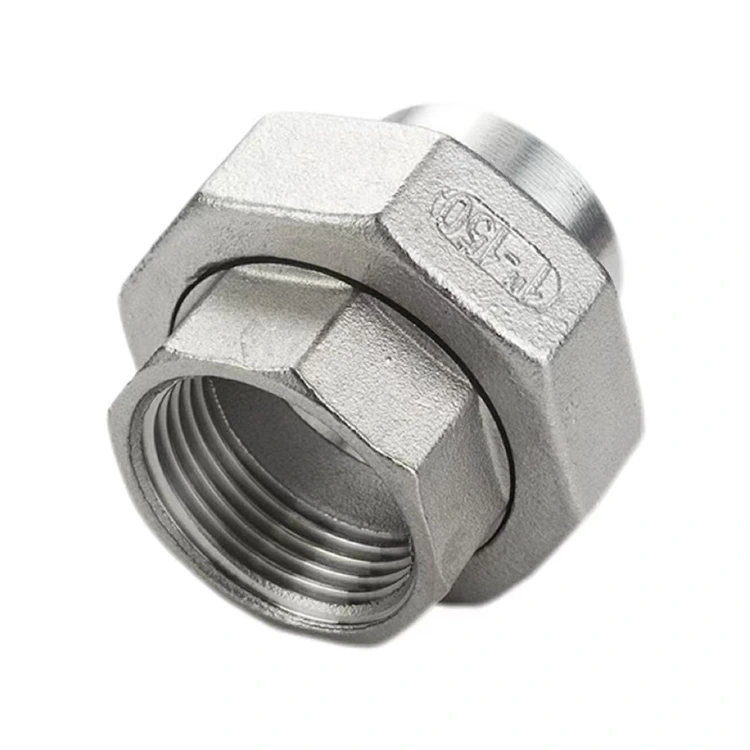

Poj Niam Xov x Butt-Weld Union

Raws li cov kws tshaj lij kev tsim cov yeeb nkab fittings hauv Suav teb, Shenchi nthuav qhia Cov Poj Niam Xov x Butt-Weld Union-cov kav dej sib txuas uas sib txuas ua ke ntawm poj niam xov kawg nrog lub pob tw-weld kawg hauv ib chav tsev.

Raws li kev ua tau zoo haum, cov haujlwm tseem ceeb ntawm Poj Niam Xov x Butt-Weld Union nyob rau hauv kev ua kom yooj yim rau kev sib txuas ntawm cov xov sib txuas thiab cov kav dej welded. Cov poj niam-xov kawg yog precision-machined siv advanced CNC tshuab, xyuas kom meej xov profiles thiab txhim khu kev qha sealing; nws tso cai rau kev sib txuas ncaj qha rau cov khoom siv sab nraud xws li li qub, faucets, thiab ntsuas ntsuas.

Lub pob tw-weld kawg nta ib lub tshuab ua ntej bevel (chamfer) tsim los rau fused ncaj qha mus rau lub raj xa dej ntawm TIG (argon arc) vuam, tsim kom muaj kev ruaj ntseg, tsis muaj pov thawj. Ua los ntawm cov hlau tsis zoo lossis tooj dag, lub koomhaum no tau ntsuas rau kev ua haujlwm siab tshaj 1.6 MPa thiab ua haujlwm nyob rau hauv qhov kub ntawm -20 ° C txog 120 ° C. Nws yog dav siv nyob rau hauv kev tsim kho tshiab los txuas welded cov kav dej loj nrog cov kab ntawm cov ceg ntoo, nrog rau hauv kev kho dua tshiab rau kev sib txuas welded systems nrog cov khoom siv threaded. Nrog nws cov peev xwm ua tau zoo, nws muab cov kev daws teeb meem yooj yim thiab txhim khu kev qha rau cov kev sib tw hauv cov kav dej sib txuas.

Khoom Specifications

Core Structure thiab Design Highlights

1. Integrated Composite Structure

Lub Shenchi Poj Niam Xov x Butt-Weld Union nta ib qho kev sib xyaw ua ke tsim qauv tsim, ua ke nrog cov poj niam threaded kawg thiab pob tw-weld kawg hauv ib lub cev. Qhov no tshem tawm qhov nyuaj uas cuam tshuam nrog kev siv ntau lub adapter fittings thiab txo qis cov ntsiab lus xau. The product is formed via a single-step forging process, resulting in a dense material structure and high mechanical strength.

2. Precision Internal Threading

Cov poj niam threaded kawg yog machined siv high-precision CNC khoom; cov xov profile yog standardized, thiab kev koom tes yog nruj, ua tau raws li thoob ntiaj teb cov qauv rau poj niam Xov x Butt-Weld Unions. Xov specifications npog BSPP, BSPT, NPT, thiab metric qauv, kom ntseeg tau tias zoo tshaj plaws compatibility nrog ib tug ntau yam ntawm txiv neej-threaded yeeb nkab fittings thiab cov cuab yeej, ob qho tib si domestic thiab thoob ntiaj teb.

3. Optimized Butt-Weld End Tsim

Lub pob tw-weld kawg nta cov txheej txheem ua ntej ua ntej bevel (chamfer), tshem tawm qhov xav tau rau qhov kev npaj thib ob ntawm qhov chaw thaum lub sijhawm teeb tsa. Thaum txuas nrog cov kav dej los ntawm TIG vuam, qhov sib koom ua ke ua tiav lub zog sib npaug ntawm cov khoom siv hauv paus, tsim kom muaj kev ruaj khov, ib qho kav dej. Cov yeeb nkab phab ntsa tuab tau raug kho kom zoo kom ntseeg tau tias ob qho tib si vuam kev ncaj ncees thiab yooj yim ntawm kev tuav.

4. Cov qauv nruab nrab ntawm Union

Cov khoom lag luam suav nrog cov qauv sib txawv nruab nrab ntawm lub koomhaum sib koom ua ke, muaj kev sib raug zoo-threaded kev sib txuas thiab cov khoom siv sealing zoo. Qhov kev tsim no ua kom muaj kev hloov pauv yooj yim thaum lub sijhawm teeb tsa thaum txhim kho kev saib xyuas yav tom ntej. Rau kev tshuaj xyuas lossis kho, cov raj xa dej tuaj yeem raug txiav tawm yooj yim los ntawm kev xoob cov kev sib koom ua ke nruab nrab, yog li tsis txhob xav tau txiav los yog rov txuas cov yeeb nkab txuas. II. Key Component Configuration

Shenchi Poj Niam Xov x Butt-Weld Union muaj cov khoom tseem ceeb hauv qab no:

Lub cev: Tsim los ntawm cov khoom zoo 304 stainless hlau lossis tooj dag, precision-forged hauv ib thooj.

Union Nut: Ua los ntawm cov khoom siv muaj zog nrog kev tiv thaiv corrosion nto; tsim los tiv thaiv xov stripping txawm tias tom qab rov sib dhos thiab disassembly.

Sealing Gasket: Muaj cov roj hmab tshwj xeeb uas tiv taus qhov kub thiab txias; embedded nyob rau hauv ib tug recessed zawj los xyuas kom meej tsis siv neeg sealing.

Poj Niam Threaded End: Precision-machined siv CNC thev naus laus zis, nrog ntau cov qauv xov muaj rau xaiv.

Cov Txheej Txheem Txhim Kho

1. Welded End Installation

Ntxuav qhov kawg welded thiab cov yeeb nkab bevel. Ua kom muaj qhov sib txawv ntawm qhov sib txawv tsawg dua 0.5mm. Ua cov hauv paus hla vuam siv TIG (GTAW) kom muaj kev nkag mus tag nrho ntawm cov hauv paus vuam; Tom qab ua tiav lub hau hla, tshuaj xyuas cov vuam rau txhua qhov porosity lossis slag inclusions.

2. Poj niam Threaded End Installation

Xyuas kom meej qhov chaw ntawm cov txiv neej-xov yeeb nkab haum yog huv si. Manually ntsia hlau tus txiv neej haum rau hauv poj niam-xov kawg ntawm lub union. Siv ib tug ciaj ntswj kom nruj nws mus rau tus txheej txheem torque; lub sab hauv sealing gasket yuav cia li compress los ua ib tug leak-proof seal.

3. Ceev faj

Thaum lub sij hawm installation, tiv thaiv tshav kub generated los ntawm vuam los ntawm kev hloov mus rau lub sealing gasket cheeb tsam. Tos kom lub welded sib koom ua ke kom txias tag nrho ua ntej ua ib qho kev sib dhos los yog disassembly kev khiav hauj lwm ntawm lub union txiv ntoo.

Cov Lus Qhia Txog Kev Kho Mob

Kev soj ntsuam tsis tu ncua: Txhua rau rau lub hlis, xyuas cov koom haum koom ua ke kom pom cov cim ntawm cov xau los yog xoob xov.

Hloov Gasket: Yog tias lub sealing gasket qhia pom tias muaj kev laus los yog hnav, tsuas yog loosen lub union txiv ntoo kom yooj yim hloov nws.

Kev Kho Xov Tooj: Tom qab ua haujlwm ntev, siv me me ntawm cov tshuaj tiv thaiv xeb rau cov xov.

Welded End Inspection: Txheeb xyuas qhov vuam seam rau kev xeb lossis tawg; Yog tias pom muaj teeb meem, ua kev kho vuam tam sim.

Kev Pabcuam Kev Ua Haujlwm: Thaum cov cuab yeej xav tau kev tshem tawm rau kev saib xyuas, tsuas yog xoob lub hauv paus kev sib koom ua ke - tsis tas yuav txiav cov kav dej.

Vim li cas thiaj xaiv Shenchi?

1. Kev Tswj Xyuas Zoo

Kev tswj xyuas kom zoo yog siv thoob plaws hauv tag nrho cov txheej txheem, los ntawm cov khoom siv raw mus rau qhov kev tshuaj xyuas zaum kawg. Txhua yam khoom tiav dhau 100% qhov ntsuas qhov ntsuas thiab ntsuas qhov xau ua ntej tawm hauv lub hoobkas.

2. OEM/ODM Customization Services

Peb muab cov kev pabcuam customized rau threading, ntim, thiab khoom cim. Peb muab lub peev xwm teb sai rau cov khoom tsis yog tus qauv thiab cov khoom siv tshwj xeeb.

3. Kev sib tw ntawm Hoobkas nqi

Raws li tus neeg muag khoom ncaj qha los ntawm lub Hoobkas, peb muab cov nqi luv nqi thiab kev txhawb nqa ntim raws li kev txhawb nqa.

4. Lub Sij Hawm Ntev, Kev Sib Koom Tes Win-Win

Peb nquag nrhiav kev tsim kom muaj kev sib raug zoo nrog kev sib raug zoo nrog cov neeg muag khoom, cov tuam txhab engineering, thiab cov neeg ua haujlwm piping. V. Cov lus qhia txog cov khoom lag luam

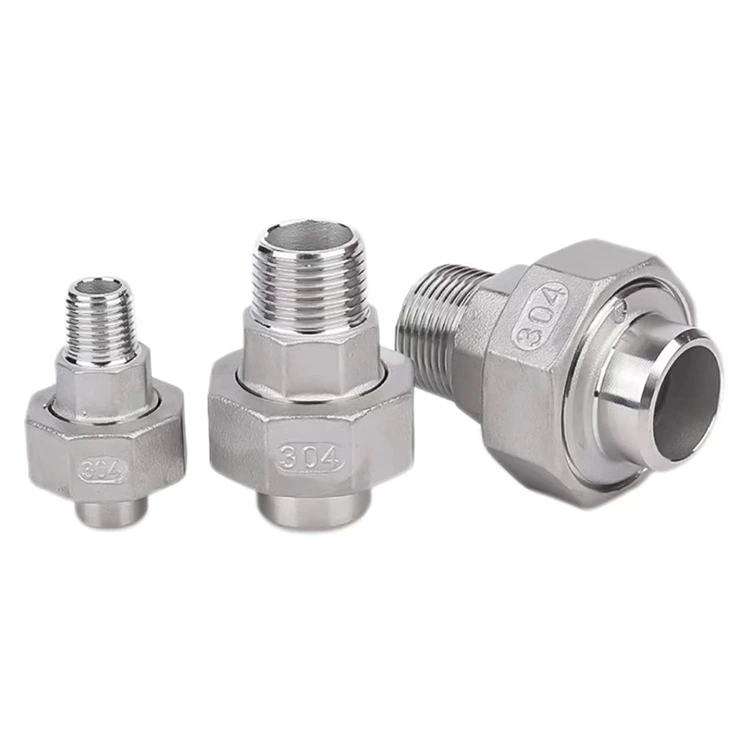

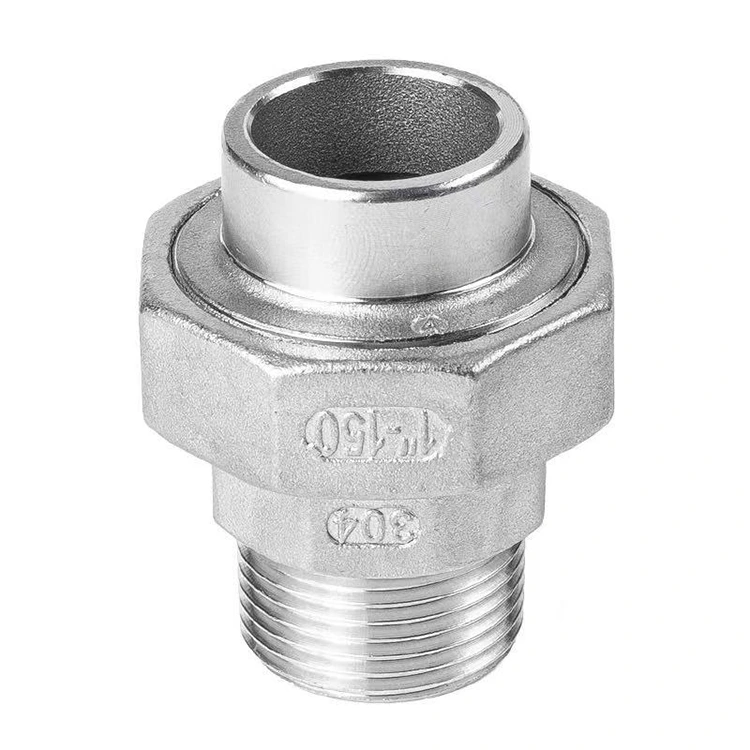

Peb lub tuam txhab kuj tseem tsim cov khoom lag luam ntxiv nyob rau hauv tib lub koob: ib lub koom haum uas muaj cov xov sab nraud ntawm ib kawg thiab lub pob tw-weld txuas rau lwm qhov. Ib qho kawg siv cov xov sab nraud los txuas nrog cov khoom siv hauv cov xov hlau, thaum lwm qhov nta lub pob tw-weld configuration. Ob yam khoom no ua tiav ib leeg zoo kawg nkaus, hais meej txog kev sib txuas cov kev xav tau thoob plaws ob qho tib si threaded thiab welded piping systems. Peb sov siab txais tos cov neeg siv khoom tshiab thiab cov uas twb muaj lawm los nug thiab tso xaj.

Xaus

Xaiv Zhejiang Shenchi Poj Niam Xov x Butt-Weld Union-zoo siab Ua nyob rau hauv Suav teb-txhais tau tias xaiv cov qauv tsim, txhim khu kev qha, thiab kev saib xyuas yooj yim. Peb tos ntsoov yuav koom tes nrog cov lag luam wholesale thoob ntiaj teb los tsim kom muaj lub neej yav tom ntej ua ke.
