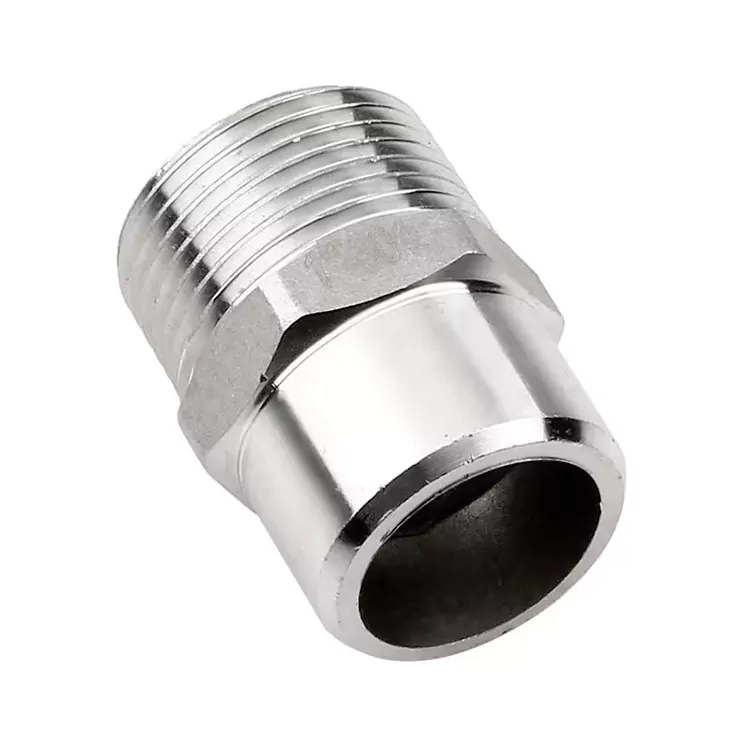

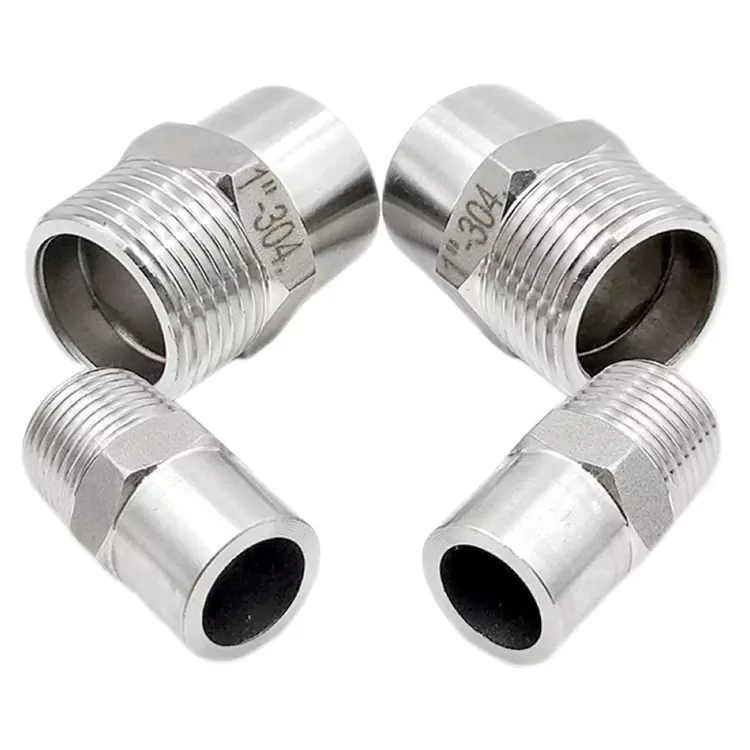

Cua sov Vuam Txiv neej Xov Joint

Yuav ua li cas xaiv txoj cai cua sov Vuam Txiv neej Xov Joint?

Raws li cov chaw tsim khoom thiab chaw muag khoom hauv Suav teb, Shenchi pom zoo cov kauj ruam hauv qab no thaum xaiv cov khoom tsim nyog:

Kauj Ruam 1: Paub meej Cov Yeeb Nkab Sab Nraud (Txhim Kho Vuam Xaus)

Ib kawg ntawm qhov haum yog muab tso rau hauv cov yeeb nkab rau vuam, yog li qhov tseeb sab nraud ntawm koj cov yeeb nkab yuav tsum tau ntsuas.

· Ntsuas txoj kev: Siv lub vernier caliper los yog ntsuas ncig thiab xam txoj kab uas hla.

· Qhov ntau thiab tsawg:

o PPR lossis cov kav dej sib xyaw: 1/2 "(≈20mm OD) lossis 3/4" (≈25mm OD)

o Cov kav hlau: DN15 (≈21.3mm), DN20 (≈26.8mm), DN25 (≈33.5mm)

· Cov lus qhia xaiv: Lub puab txoj kab uas hla ntawm qhov kawg vuam yuav tsum yog me ntsis loj dua cov yeeb nkab OD (feem ntau yog 0.1-0.2 hli clearance) rau kev nkag thiab vuam txaus.

Khoom Specifications

Cov Txheej Txheem Tseem Ceeb

Shenchi tsim txhua qhov haum nrog cov qauv zoo rau kev ua haujlwm ntev thiab kev ua haujlwm:

· Vuam kawg:

Forged los ntawm high-zoo stainless hlau nrog nruam hlau lis, tsis muaj porosity. Tsim los nrog tus qauv bevel rau kev vuam zoo, ua kom muaj zog fusion thiab ua haujlwm ruaj khov-pov thawj.

· Xov Xaus:

Precision-machined threads nrog qhov tseeb profile thiab du nto. Kev tswj nruj nruj ua kom muaj kev sib koom tes nruj nrog cov khoom sib txuas. Cov kev kho deg xaiv tau (galvanized, npib tsib xee-plated, lossis ntuj tiav) txhim kho corrosion kuj.

· Transition Zone:

Txhim kho phab ntsa tuab nrog kev hloov pauv ntawm arc kom txo qis kev ntxhov siab, tiv thaiv kev tawg ntawm thermal expansion lossis sab nraud quab yuam, txhim kho tag nrho lub zog thiab kev ua neej.

· Cov khoom siv xaiv:

o 304 Stainless Steel: Haum rau cov dej haus thiab cov khoom noj khoom haus

o 316L Stainless Hlau: Zoo tagnrho rau marine thiab corrosive ib puag ncig

Cov Lus Qhia Txog Kev Kho Mob

Lub Cua sov Vuam Txiv Neej Thread Joint yog tsim los rau kev saib xyuas yooj yim thiab kev pab lub neej ntev:

· Ua ntej installation: xyuas kom vuam kawg yog huv si thiab tsis muaj roj los yog xeb; xyuas cov xov rau kev ncaj ncees.

· Thaum lub sij hawm vuam: Tiv thaiv cov xov los ntawm vuam spatter siv cov ntaub ntub dej los yog cov tshuaj tiv thaiv. Cia qhov txias txias tom qab vuam.

· Disassembly: Siv ib tug ciaj ntswj ntawm lub hex seem; tsis txhob tuav cov xov ncaj qha.

· Kev tshuaj xyuas niaj hnub: Pom zoo txhua xyoo - kuaj xyuas qhov corrosion, to, los yog xoob.

· Rov pib dua tom qab lub sijhawm poob: Rov xyuas cov ntaub ntawv sib khi thiab cov xov txuas ua ntej nias.

Procurement & Service Advantages

Shenchi muab kev txhawb nqa rau cov neeg siv khoom thoob ntiaj teb:

· ODM / OEM customization: Tsis yog-tus qauv ntau thiab tsawg, tshwj xeeb threads, laser npav, thiab customized ntim muaj

· Kev tswj xyuas nruj: Kev tshuaj xyuas tag nrho los ntawm cov khoom siv raw mus rau cov khoom tiav, kom ua raws li cov qauv thoob ntiaj teb

· Export ntim: Anti-xeb thiab anti-shock ntim kom muaj kev nyab xeeb xa khoom thoob ntiaj teb
