Ib leeg-clamp 90-degree luj tshib

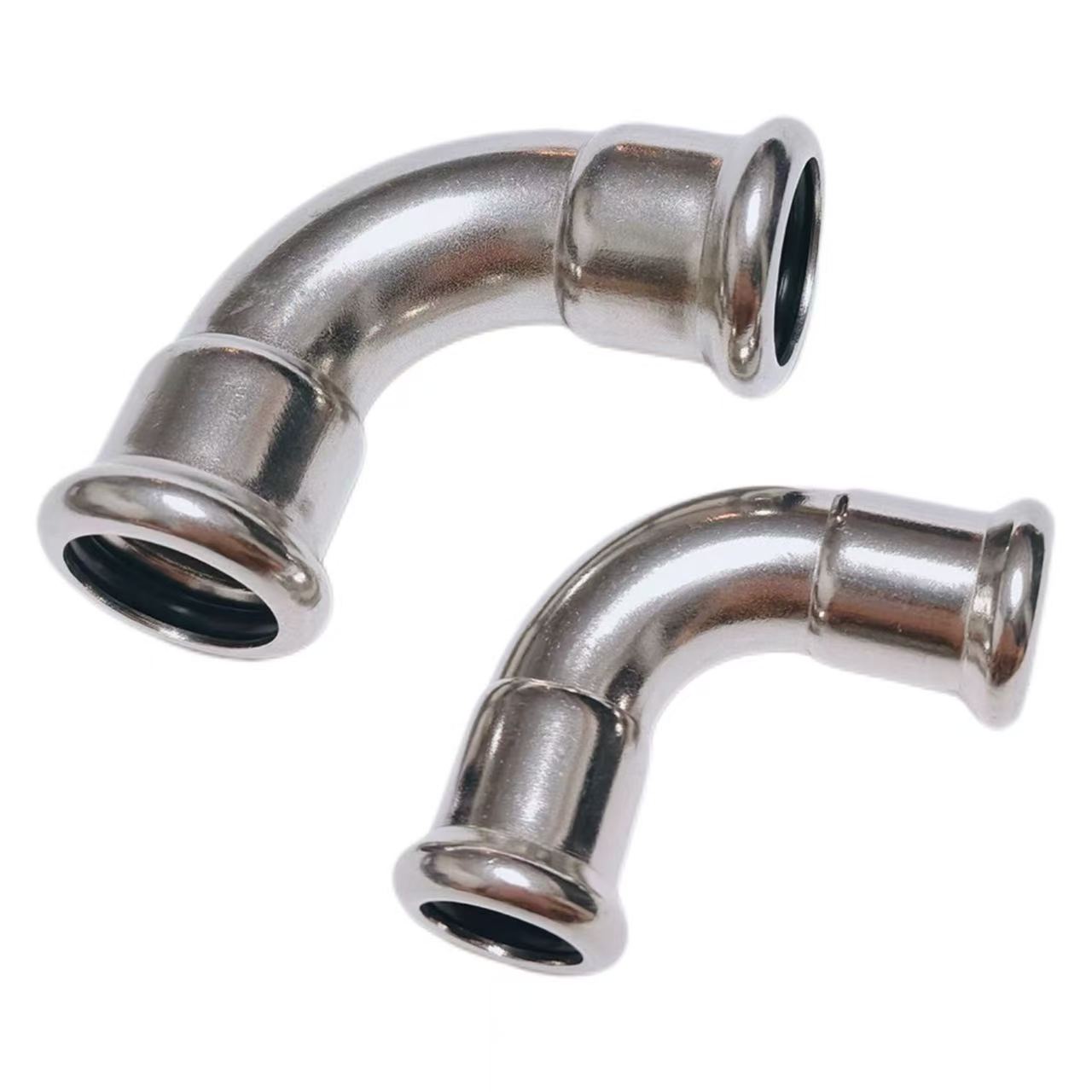

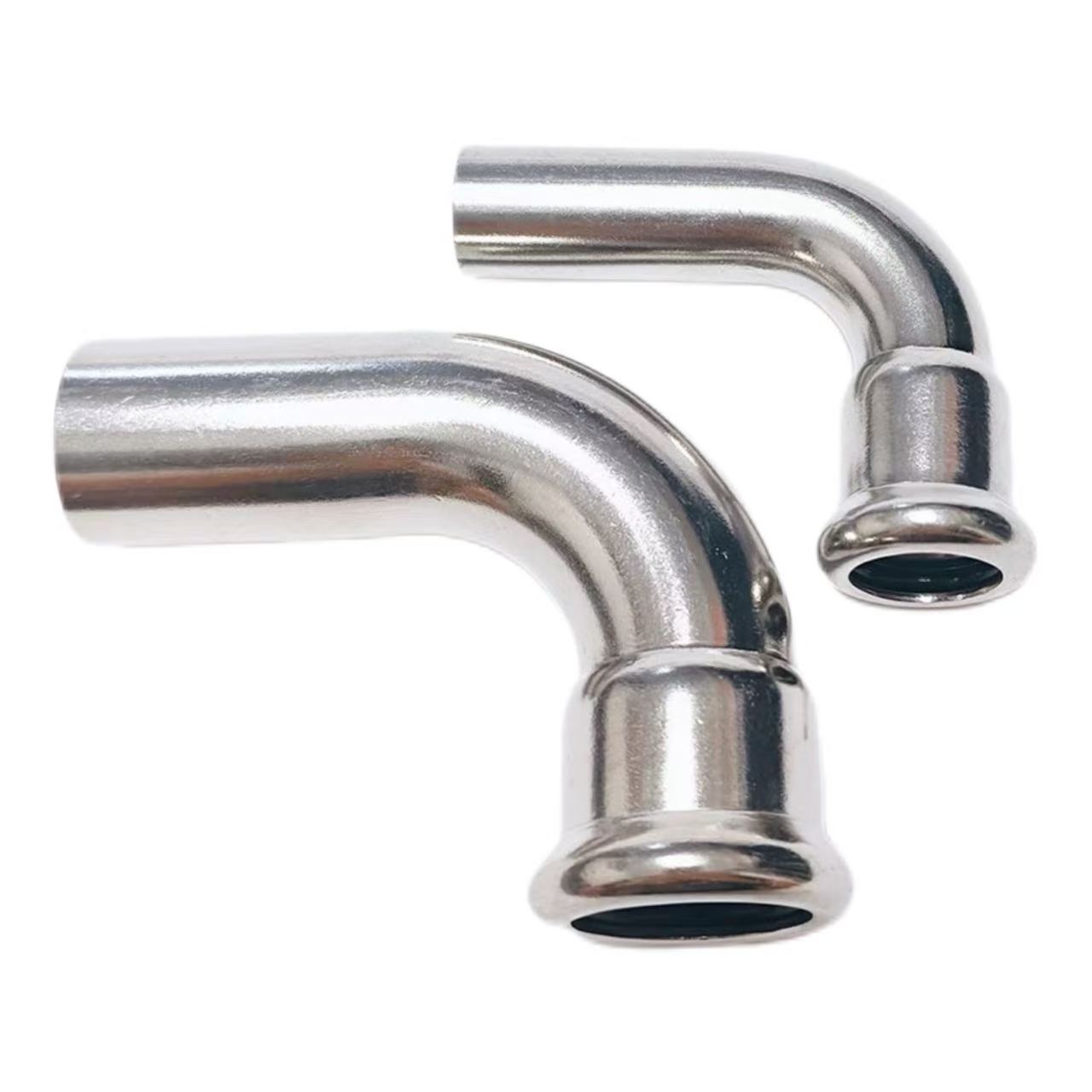

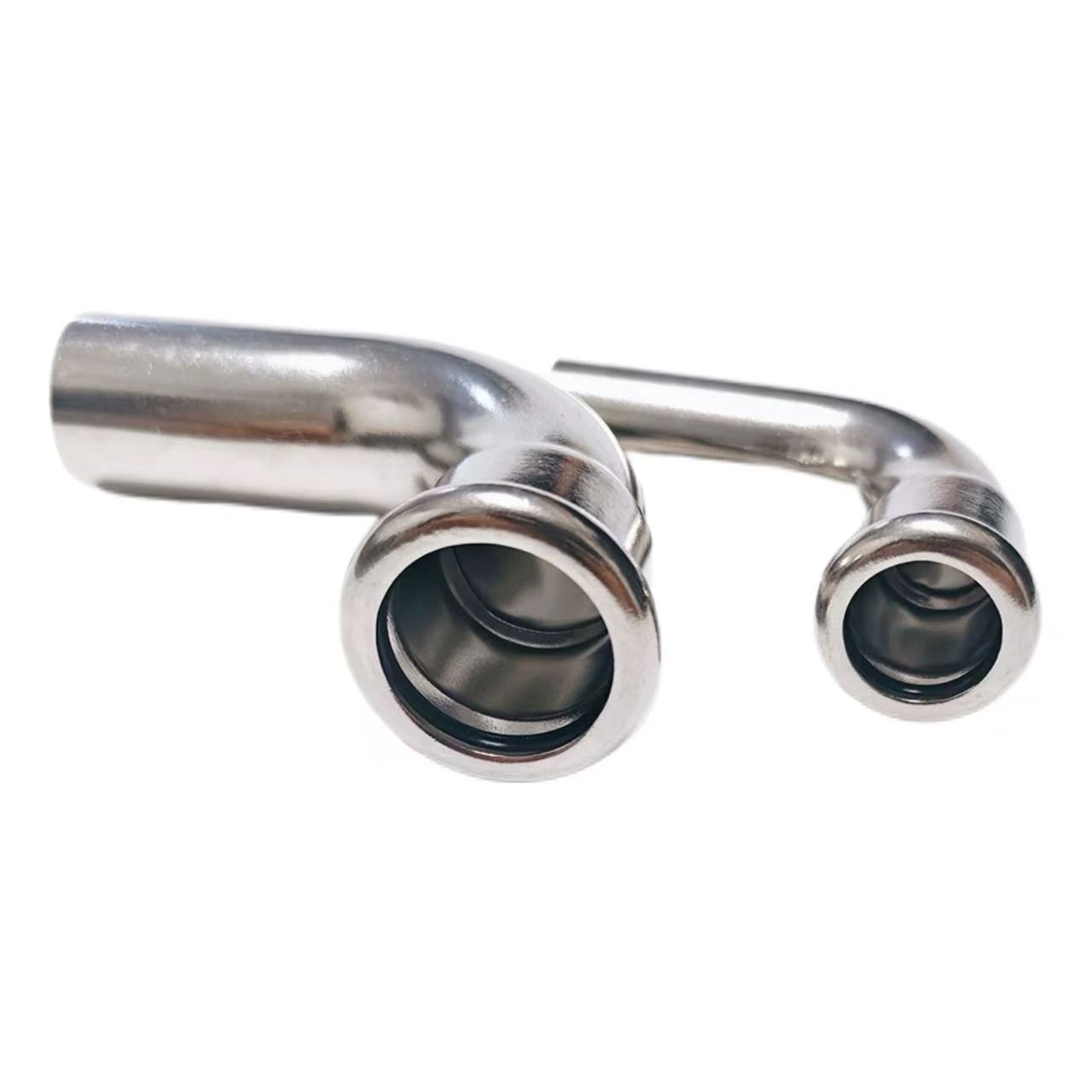

Yam khoom: Ib-Clip 90-Degree B-hom Luj tshib

Shenchi ib leeg-clip 90-degree B-hom luj tshib yog tsim los rau nyias-walled stainless hlau piping systems, muab ib tug npaum thiab txhim khu kev qha txoj cai tig. Cov khoom no yog tsim los ntawm cov khoom siv zoo xws li tooj dag, SUS304, thiab SUS316L, kom ntseeg tau tias muaj kev tiv thaiv corrosion, durability, thiab robustness. Qhov kev sib txuas ib-clip tsim tso cai rau kev teeb tsa yooj yim yam tsis muaj vuam, ua kom muaj kev nyab xeeb thiab ua haujlwm zoo. B-hom qauv txhawb nqa ntawm qhov chaw thib ob compression lossis vuam adaptation, yoog raws rau cov haujlwm sib txawv. Cov phab ntsa du ntawm qhov haum ua rau tsis muaj dej tsis kam thiab tsis tshua muaj kev sib tw, kom ntseeg tau tias kev xa tawm huv thiab du. Nws yog dav siv rau cov dej xa dej thiab cov kav dej, HVAC, thiab cov kav dej ua haujlwm.

Khoom Parameters

Qhov zoo ntawm Kev Taw Qhia Kev Ua Haujlwm Hydraulic

Shenchi phau ntawv hydraulic ib leeg-clamp 90-degree lub luj tshib siv phau ntawv hydraulic cov cuab yeej rau crimping kev sib txuas. Thaum lub sijhawm ua haujlwm, ntxig cov yeeb nkab rau hauv lub qhov (socket) haum rau qhov tob ntawm qhov cim, ua raws li phau ntawv hydraulic clamps nrog cov tav ntawm qhov haum, thiab nias tus kov kom nce siab. Thaum lub teeb siab mus txog, nws cia li tso siab thiab rov pib dua. Cov txheej txheem hydraulic phau ntawv yuav tsum tsis muaj hluav taws xob sab nraud, ua rau nws tsim nyog rau kev ua haujlwm hauv thaj chaw tsis muaj hluav taws xob lossis hauv qhov chaw kaw. Piv nrog rau cov phau ntawv nkaus xwb crimping pliers, txoj kev hydraulic muab ntau txawm quab yuam thiab ruaj khov crimping zoo, tshwj xeeb tshaj yog haum rau loj-inch fittings ntawm DN50 thiab saum toj no, txuag kev siv zog thiab xyuas kom meej sealing txhim khu kev qha.

Installation cov kauj ruam thiab cov yuam sij

Tswj Cov Ntsiab Lus Txhim kho ib leeg-xovxwm 90-degree lub luj tshib nrog kev kho tshwj xeeb los ntawm Shenchi yuav tsum tau ua raws li tsib kauj ruam: Kauj Ruam 1: Txiav cov yeeb nkab ntsug, tshem tawm tag nrho cov sab hauv thiab sab nraud burrs kom tsis txhob khawb lub nplhaib sealing. Kauj Ruam 2: Kos cov cim qhov tob ntawm cov yeeb nkab kom ntseeg tau tias nws tau muab tso rau tag nrho. Kauj Ruam 3: Ntxig cov yeeb nkab rau hauv lub qhov (socket) kom haum kom txog thaum nws mus txog qhov chaw nyob sab hauv. Kauj Ruam 4: Xaiv lub puab tsaig crimping uas phim cov yeeb nkab txoj kab uas hla, ua kom haum nrog lub puab tsaig, thiab xyuas kom meej tias lub puab tsaig yog vertically qhwv ib ncig ntawm qhov haum. Kauj Ruam 5: Siv cov cuab yeej hydraulic los siv lub siab kom txog thaum lub puab tsaig raug kaw tag nrho thiab lub hexagon pom meej. Tom qab crimping, xyuas seb cov kab cim tau npog los ntawm lub qhov (socket) kawg lub ntsej muag.

Kev xaiv cov khoom siv thiab cov xwm txheej siv tau

Shenchi phau ntawv hydraulic ib leeg-clamp 90-degree lub luj tshib yog muaj nyob rau hauv peb cov ntaub ntawv: tooj dag: tus nqi siab-kev ua tau zoo, kev ua haujlwm zoo, tsim nyog rau kev siv pej xeem xws li dej thiab roj. SUS304 Stainless Steel: General-purpose stainless hlau, zoo heev corrosion kuj, ua tau raws li cov qauv kev nyiam huv ntawm cov dej haus, tsim nyog rau cov dej hauv tsev thiab kev lag luam tawm. SUS316L Stainless Hlau: Ntxiv molybdenum, muaj zog tiv thaiv chloride ion pitting corrosion, haum rau cov kab mob corrosive xws li cov ntug hiav txwv dej, thaj chaw dej hiav txwv, thiab cov nroj tsuag tshuaj. Cov ntsaws ruaj ruaj yog uniformly ua los ntawm EPDM, kub resistant los ntawm -20 ℃ to 110 ℃, resistant rau qaug zog acids thiab alkalis, haum rau ntau yam xov xwm xws li dej, huab cua, roj, thiab roj av.

Kev Pabcuam Kev Muag Khoom thiab Customization

Raws li tus kws tshaj lij ntawm ib leeg-clamp 90-degree lub luj tshib tsim nyob rau hauv Suav teb, Shenchi txhawb nqa ODM thiab OEM kev pabcuam. Txawm hais tias koj xav tau tooj dag, 304, lossis 316L khoom, NPT, BSP, BSPT, lossis DIN threaded interface qauv, lossis DN6 lossis DN100 specifications, peb tuaj yeem tsim raws li koj xav tau. Peb khaws cov khoom lag luam ntau ntawm cov qauv ntau thiab tsawg txhua xyoo thiab muab cov kev pabcuam coj mus kuaj. Kev tsim khoom loj yuav pib tom qab cov neeg siv khoom pom zoo ntawm cov qauv. Peb cov khoom ua tau raws li cov qauv thoob ntiaj teb xws li ANSI, BS, DIN, ISO, thiab JIS, ua tau raws li qhov xav tau ntawm cov haujlwm thoob ntiaj teb. Rau qhov tseeb nqe quotes ntawm luv nqi ib leeg-clamp 90-degree luj tshib, los yog xav paub txog kev koom tes lag luam wholesale, thov hu rau peb tam sim.
