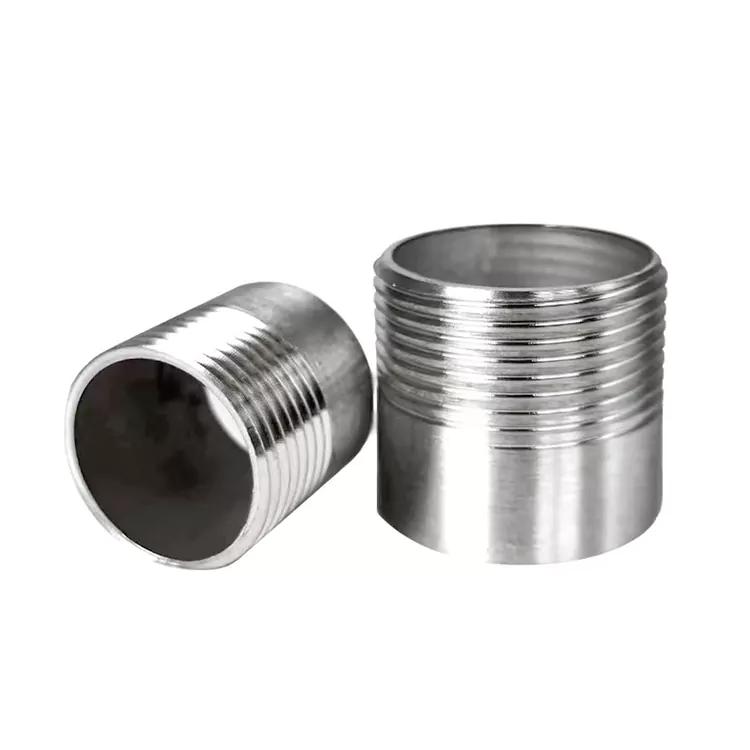

Single End Txiv neej Xov Fitting

Lub Hoobkas Shenchi Ib Leeg Ib Leeg Txiv Neej Xov Fitting yog qhov sib txuas qhov tseeb uas muaj cov xov sab nraud ntawm ib kawg, thaum lwm qhov kawg tuaj yeem teeb tsa rau hauv cov qauv sib txawv raws li daim ntawv thov.

Raws li qhov ua tau zoo thiab ruaj khov Ib Leeg Poj Niam Xov Fitting, nws txoj haujlwm tseem ceeb yog txhawm rau hloov pauv hloov pauv hloov pauv ntawm cov xov xov, hoses, kav dej, lossis khoom siv. Externally threaded kawg yog tsim los siv high-precision CNC machining, xyuas kom meej cov qauv xov profiles thiab nruj kev koom tes rau kev ruaj ntseg thiab txhim khu kev qha sealing nrog internal-xov Cheebtsam xws li cov kav dej los yog li qub.

Qhov kawg ntawm qhov kawg tuaj yeem teeb tsa raws li cov yeeb nkab kawg, barbed haum, lossis cov qauv welded kom haum rau cov haujlwm sib txawv. Ua los ntawm cov hlau tsis zoo los yog tooj dag, cov khoom lag luam muaj kev tiv thaiv zoo heev thiab kev tiv thaiv corrosion, thiab yog siv dav hauv kev tsim cov kav dej, hydraulic systems, thiab pneumatic pipelines.

Peb kuj tsim cov khoom lag luam ntsig txog, suav nrog "precision ob leeg txiv neej xov fittings" thiab "high-pressure internal single-xov fittings," ntsib ntau hom kev sib txuas ntawm ob txoj xov txuas.

Khoom Parameters

Corrosion Resistance

· Cov Khoom Xaiv: 304, 316L stainless hlau thiab tooj dag. 316L muaj molybdenum, muab kev tiv thaiv zoo tshaj plaws rau chloride corrosion, zoo tagnrho rau tshuaj lom neeg thiab dej hiav txwv.

· Precision Manufacturing: Advanced forging technology tshem tawm cov xuab zeb qhov thiab porosity. Surface passivation tsim ib txheej tuab oxide, ua kom qeeb corrosion.

· Cov qauv nruj: Ua raws li ANSI, BS, DIN, ISO, thiab JIS cov qauv. Rated ntawm PN16, kom ntseeg tau lub sij hawm ntev tiv thaiv xeb thiab to.

Daim ntawv thov Scenario

· Kev Siv Khoom Siv: Tshuaj lom neeg, roj av, thiab lub zog siv hluav taws xob xav tau kev tiv thaiv kub, siab, thiab corrosive media.

· Kev Siv Chaw Nyob: Cov kav dej, cua sov, thiab chav dej teeb nrog kev sib raug zoo (1/8 "–4" / DN6-DN100).

· Khoom noj khoom haus & Pharmaceutical: du, tsis muaj paug paug qhov chaw haum rau cov dej haus, dej haus, thiab tshuaj ntau lawm kab.

Cov Txheej Txheem Txhim Kho

· Ntxuav & Tshuaj xyuas: Tshem cov khib nyiab thiab xyuas cov xov xwm ua ntej kev teeb tsa.

· Kev kho sealing: qhwv PTFE daim kab xev clockwise (txoj cai-tes xov kev taw qhia) 3-5 tig tusyees rau hauv xov grooves.

· Kev Tightening: Stainless hlau threads yuav ntes tau; siv lub torque ciaj ntswj thiab zawm ib qho ntxiv 1/4 tig tom qab kev koom tes zoo.

· Kev xaiv cuab yeej: Siv ib tug ciaj ntswj ntawm lub hex seem; zam cov yeeb nkab wrenches ntawm qhov chaw los tiv thaiv kev puas tsuaj rau cov txheej txheem passivation.

· Kev sib txuas ntawm lub valve: Ib txwm tuav lub valve lub cev nrog ib tug ciaj ntswj ua ntej kom tsis txhob deformation los ntawm torque kis tau tus mob.

Manufacturing & Custom Service

Zhejiang Shenchi Environmental Technology Co., Ltd. tshwj xeeb hauv cov yeeb nkab haum tsim thiab txhawb ODM / OEM customization. Tsis yog-tus qauv specifications yuav ua tau raws li drawings.

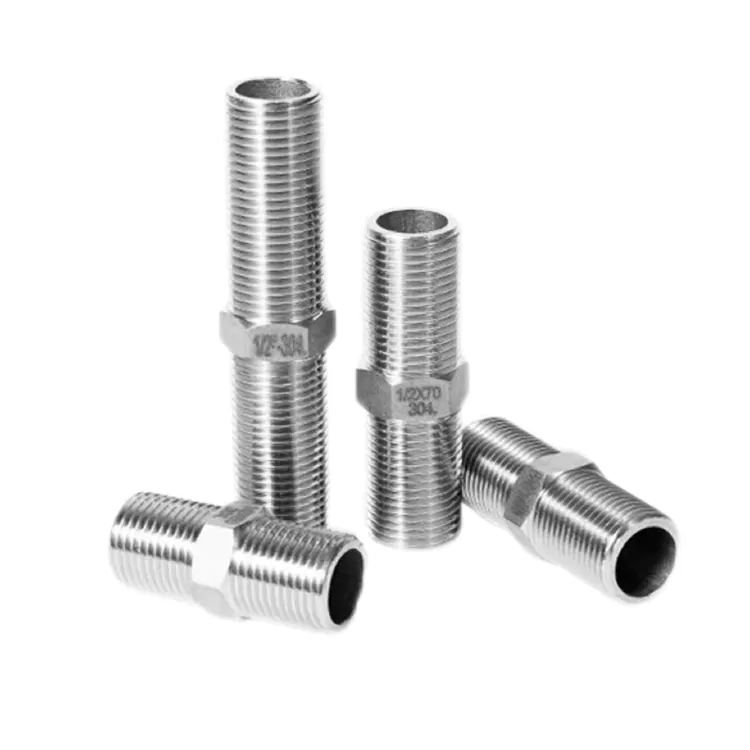

Ntxiv nrog rau Single End Txiv neej Xov Fitting, peb kuj tsim cov khoom lag luam ntsig txog xws li precision ob leeg txiv neej xov fittings thiab high-pressure internal single-thread fittings, haum rau cov twj paj nruag thiab hydraulic systems.

Peb zoo siab tos txais cov neeg siv khoom thoob ntiaj teb los koom tes nrog peb thiab txaus siab rau cov luv nqi luv luv ntawm threaded fittings.
