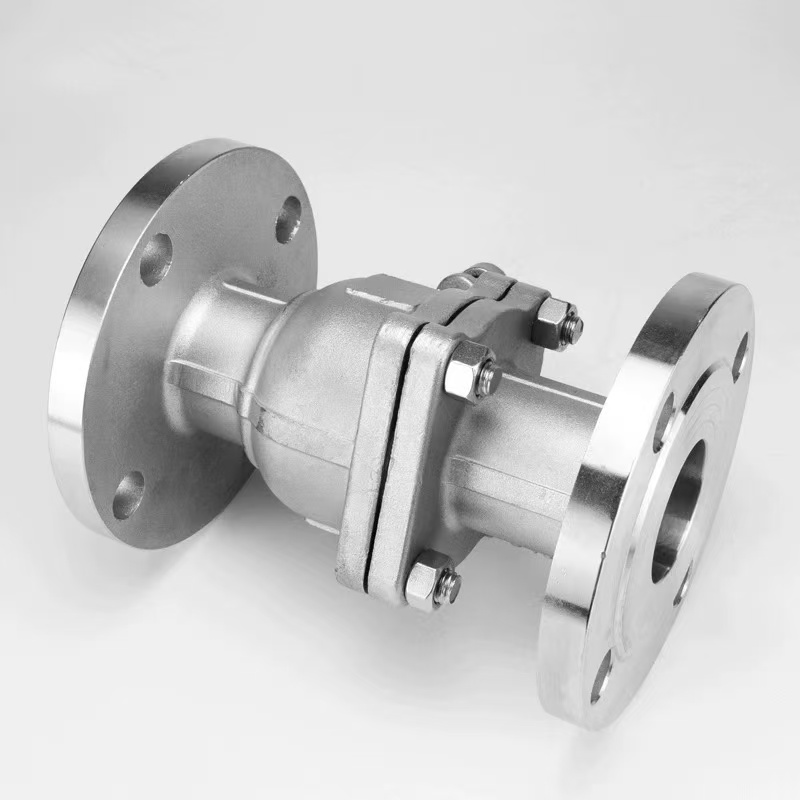

Chav Flange Pob Valve
Model:1100
Lub qhov cub flange pob valve kaw-tawm valve tshwj xeeb tsim los rau qhov kub kub tshaj tawm. Nws txuas rau cov kav dej ntawm flanges thiab tswj kev qhib thiab kaw los ntawm kev tig lub pob 90 ° nyob ib ncig ntawm lub valve qia axis. Shenchi manufactures chav flange pob valve hauv Suav teb, muab cov khoom ncaj nraim los ntawm cov chaw tsim khoom. Featuring lub siab-kub resistant PPL foob, xoom to, dej rauj kuj, thiab ib tug robust flange kev twb kev txuas, nws muab txhim khu kev qha kaw-off rau chav tshuab.
Dab tsi yog qhov zoo ntawm chav flange pob li qub?
Shenchi Hoobkas lub high-temperature resistant steam flange pob li qub muaj lub cev ua los ntawm kev ua tib zoo xaiv tooj dag, SUS304, los yog SUS316L, nrog lub valve tub ntxhais ua los ntawm tooj liab lossis stainless hlau. Nruab nrog PPL kub-kub foob, lawv ua tiav xoom xau hauv chav ib puag ncig txog 250 ℃. Lub flange kev twb kev txuas yog ruaj khov thiab txhim khu kev qha, resistant rau dej rauj cuam tshuam, nrog qis qhib thiab kaw torque thiab ua haujlwm yooj yim. Shenchi li qub yog corrosion-resistant thiab high-pressure resistant, haum rau chav yeeb nkab tes hauj lwm, tshav kub hloov chaw, thiab lwm yam kev khiav hauj lwm tej yam kev mob, ho txo txij nkawm zaus thiab ua rau lawv zoo tagnrho kaw-off tswj Cheebtsam rau chav tsev.
| Khoom npe: Chav Flanged Pob Valve |
Specification: (1/8 "-4") DN6-DN100 |
| Nominal Siab: PN16 |
Khoom siv lub cev: WCB, SUS304 (CF8), SUS316L (CF3M) |
| Cov Qauv: ANSI, BS, DIN, ISO, JIS |
Kev Ua Haujlwm Kub: -20 ℃ ~ + 150 ℃ (tus qauv), mus txog + 350 ℃ (siab kub), mus txog -196 ℃ (tsis kub) |
| Cov khoom siv hlau sab hauv: WCB, SUS304 (CF8), SUS316L (CF3M) |
Medium Temperature: Kub kub, tsis tshua muaj kub, nruab nrab kub, ib txwm kub |
| Txoj kev ua haujlwm: Phau ntawv |
Seals: EPDM |
| Txoj kev sib txuas: Flange txuas |
Daim ntawv thov: dej, cua, roj, roj, kua, thiab lwm yam |
| Keeb kwm: Suav teb |
Qauv: Samples muaj |
PPL Sealing Temperature Range
Shenchi chav flange pob li qub siv cov khoom ua haujlwm siab PPL. PPL (para-polystyrene) yog cov khoom siv hluav taws xob kub-resistant engineering yas nrog qhov ntsuas kub tsawg ntawm kwv yees li -20 ℃. Saum toj no qhov kub thiab txias, cov ntsaws ruaj ruaj ruaj zoo txhua yam muaj zog thiab qhov ntev stability. Thaum qhov kub thiab txias poob qis dua -20 ℃, PPL cov khoom maj mam poob nws cov tawv tawv, ua nkig thiab tawv, uas ua rau lub foob tsis ua haujlwm.
Hais txog qhov kub thiab txias tsis kam, PPL tuaj yeem tiv taus qhov kub thiab txias ntawm 260 ℃ -300 ℃ rau lub sijhawm ntev, ua haujlwm tshwj xeeb zoo nyob rau hauv cov dej saturated, tsis muaj softening lossis deforming zoo li PTFE. Rau cov xwm txheej uas yuav tsum tau ua haujlwm qis dua, Shenchi muab EPDM sealing version ua lwm txoj hauv kev; EPDM tuaj yeem tiv taus qhov kub thiab txias li -40 ℃. Lub hauv paus kev sib tw ntawm lub siab-sealing steam flange pob valve yog nyob rau hauv qhov sib txuam ntawm cov khoom sib khi rau ntawm qhov chaw ua haujlwm.
Muaj feem xyuam Media thiab qhov kub thiab txias
Shenchi chav flange pob li qub yog tsim rau ntau yam kev tshaj tawm, suav nrog dej, huab cua, roj, roj, ntau yam kua, thiab qhov tseem ceeb tshaj, saturated chav. Qhov ntsuas kub tshaj tawm npog qhov kub, nruab nrab, ib txwm muaj, thiab tsis tshua muaj kub, ua tiav qhov ntsuas kub tiag tiag. Hais txog kev xaiv cov khoom sib khi: thaum nruab nrog PPL cov ntsaws ruaj ruaj, qhov ntsuas kub siv tau yog -20 ℃ to 260 ℃, nrog lub sijhawm luv tshaj plaws tiv taus kub ntawm 300 ℃, ua rau nws nyiam cov tshuaj rau cov kav dej; Thaum nruab nrog EPDM cov ntsaws ruaj ruaj, qhov siv tau qhov kub thiab txias yog -40 ℃ to 120 ℃, ua rau nws tsim nyog rau qhov kub thiab txias ib puag ncig, cov dej kub kub, lossis cua txias cua txias.
Tuam Tshoj chav flange pob valve chaw tsim tshuaj paus Shenchi pom zoo kom cov neeg siv khoom xaiv cov khoom sib khi raws li qhov ntsuas kub ua haujlwm. Yog tias koj tsis paub meej tias yuav xaiv li cas, koj tuaj yeem muab cov kev txwv tshwj xeeb, thiab Shenchi pab pawg kws tshaj lij yuav pom zoo rau kev teeb tsa zoo rau koj. Qhov zoo tshaj plaws chav flange pob valve yuav tsum tsis yog tsuas yog xau-pov thawj ntawm qhov kub thiab txias, tab sis kuj txhim khu kev qha thaum pib kub qis; Shenchi qhov kev xaiv dual-seal yog tsim los rau lub hom phiaj no.
