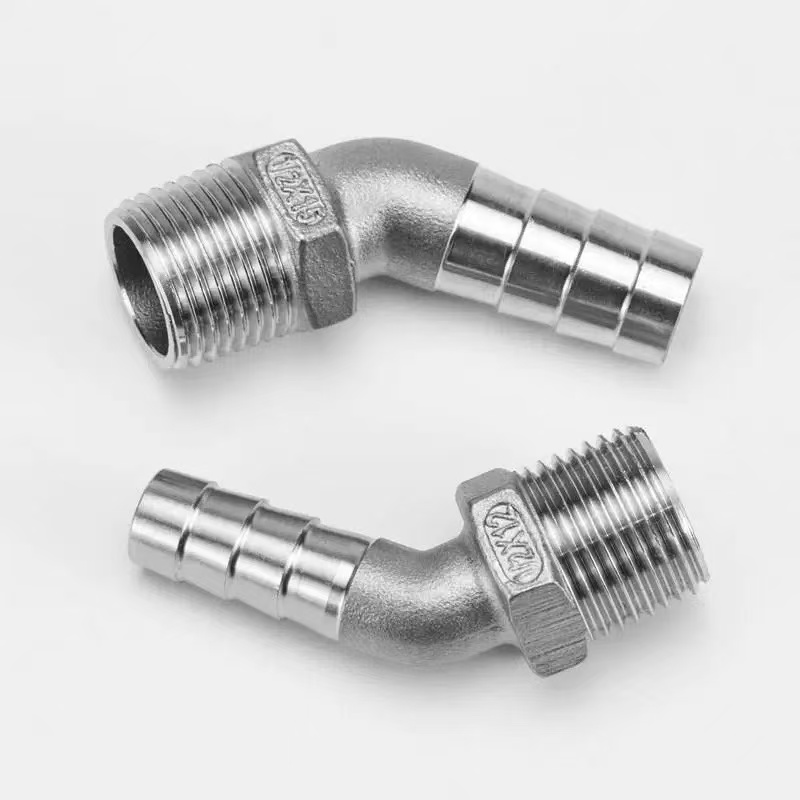

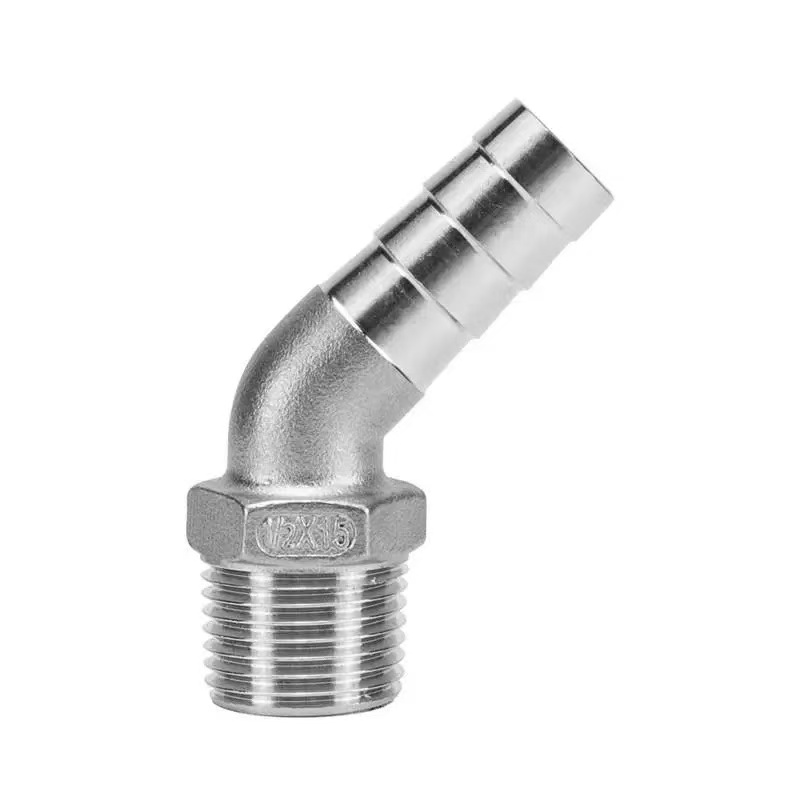

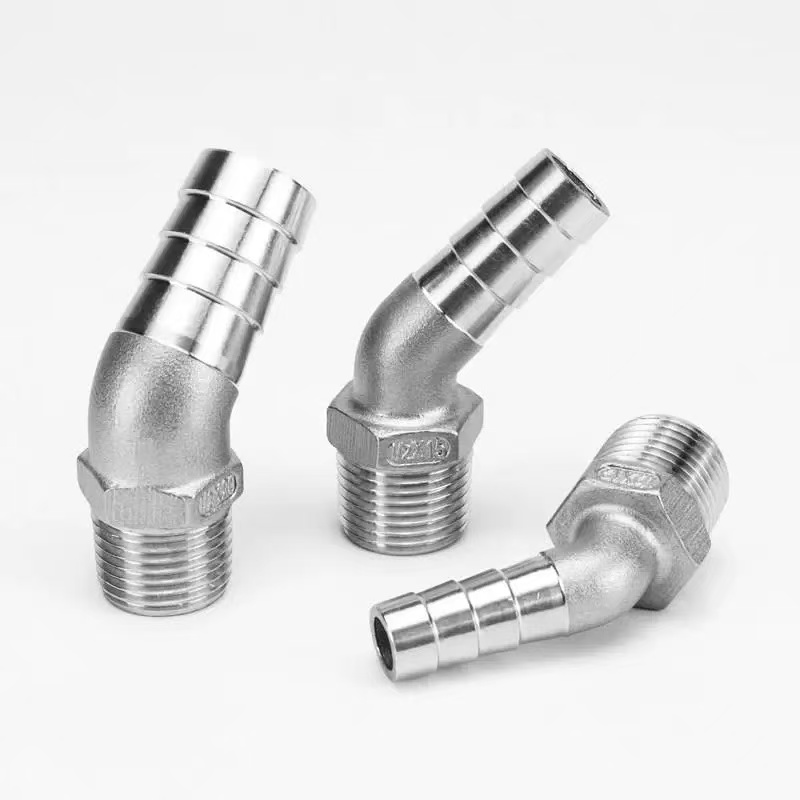

45-Degree Hexagonal Txiv neej Xov Luj Tshib Haum

45-Degree Hexagonal Txiv neej Xov Luj Fitting los ntawm Shenchi Factory yog tsim tshwj xeeb rau cov ntawv thov uas xav tau kev hloov pauv, 45-degree kev taw qhia thaum hloov los ntawm cov kav dej nruj mus rau cov kav dej hloov tau yooj yim. Nws sab nraud xov kawg screws nruj nreem rau hauv ib tug sib txuas hauv threaded haum, kom ntseeg tau ib tug leak-proof foob nyob rau hauv lub hlau piping system. Lub barbed hose kawg, ib zaug tso rau hauv ib lub hose hloov tau, siv cov kab rov qab-angled barbs kom khov kho cov phab ntsa sab hauv ntawm lub hose; Thaum ruaj ntseg nrog lub hose clamp, qhov no tsim kom muaj kev ruaj ntseg, tiv thaiv kev sib txuas. Lub 45-degree angled tsim txo cov kua dej tsis kam piv rau tus qauv 90-degree lub luj tshib, ua rau nws zoo tagnrho rau cov kav dej uas txo qis qhov poob siab yog qhov tseem ceeb. Tsis tas li ntawd, lub cev hexagonal nyob rau hauv nruab nrab ntawm qhov haum ua kom yooj yim rau kev nkag mus rau cov cuab yeej thiab ua kom ceev, txhim khu kev qha.

Khoom Specifications

Threaded / Barbed txuas

Shenchi 45-Degree Hexagonal Txiv neej Xov Luj Tshib Haum rau kev tsim dual-interface, ua kom muaj kev hloov pauv ntawm cov tubing nruj thiab cov hoses hloov tau yooj yim:

Txiv neej Xov Xaus: Lub precision-machined lwm threads nruj me ntsis raws li thoob ntiaj teb cov qauv (BSPT / NPT xaiv muaj). Cov yam ntxwv tshwj xeeb ntawm cov xov tsis tu ncua, lawv tsim cov hlau-rau-hlau foob thaum nruj tiv thaiv cov poj niam-xov fittings, li qub, lossis cov khoom siv, kom ntseeg tau lub foob zoo yam tsis tas yuav muaj lub zog ntau dhau. Cov xov nto yog du thiab tsis muaj burrs, tiv thaiv kev puas tsuaj rau mating threads thaum lub sij hawm installation.

Barbed End: Qhov kawg no nta ntau lub nplhaib barbed qauv nrog optimized hniav ces kaum thiab qhov tob. Thaum ib lub hose hloov tau yooj yim tso, cov barbs embed lawv tus kheej mus rau hauv lub puab phab ntsa ntawm lub hose los tsim ib tug multi-point mechanical tuav. Thaum muaj kev ruaj ntseg nrog stainless hlau hose clamp, lub rooj sib txoos ua tiav ib qho kev rub tawm tsis kam tshaj 50 kg. Qhov kawg barbed muaj nyob rau hauv ib tug ntau yam ntawm ntau thiab tsawg pab, sib xws nrog ntau yam saj zawg zog hoses xws li los ntawm 3 hli mus rau 25 hli nyob rau hauv lub puab kab.

Kev ntsuas siab

Shenchi 45-Degree Hexagonal Txiv neej Xov Luj Tshib Fitting muab cov kev ntsuas siab kom ua tau raws li qhov xav tau ntawm ntau yam kev ua haujlwm:

Standard Pressure: 1.6 MPa - haum rau feem ntau ntawm thaj chaw, kev lag luam, thiab lub teeb muaj kev lag luam, xws li cov khoom siv dej, dej ua liaj ua teb, thiab cov tshuab ua dej txias.

High-Pressure Option: Lub 316L stainless hlau series yog ntsuas txog li 2.5 MPa - haum rau cov ntawv thov uas xav tau siab dua, xws li hydraulic systems thiab high-pressure tu khoom.

Kev Ntsuam Xyuas Kev Nyab Xeeb: Txhua pawg ntawm cov Tuam Tshoj-tsim 45-degree hexagonal txiv neej-xov luj tshib fittings undergoes nruj Hoobkas kev sim siab. Kev ntsuas siab yog teem rau ntawm 1.5 npaug ntawm kev ua haujlwm siab, kom ntseeg tau lub sijhawm ntev, ruaj khov, thiab tsis muaj dej ntws tawm ntawm qhov ntsuas siab.

Temperature-Pressure Curve: Nyob rau hauv qhov kev khiav hauj lwm kub ntawm -20 ° C mus rau 120 ° C, qhov ntsuas siab nyob twj ywm; sab nraud ntawm qhov ntsuas kub no, qhov tso cai ua haujlwm siab yuav tsum tau derated raws li cov qauv txheej txheem.

Interoperability thiab Compatibility

Shenchi 45-Degree Hexagonal Txiv neej Xov Luj Tshib Haum yog tsim los nrog kev txiav txim siab tag nrho rau kev sib koom tes thiab kev sib raug zoo ntawm kev ua lag luam thoob ntiaj teb:

Thread Standard Compatibility: Muaj nyob rau hauv ntau cov qauv xov-xws li BSPT (British Standard Pipe Taper) thiab NPT (American National Pipe Taper) - txhawm rau xyuas kom muaj kev sib raug zoo nrog cov kav dej hauv cheeb tsam sib txawv. Cov neeg siv khoom tuaj yeem xaiv cov xov xov uas tsim nyog raws li lawv lub hom phiaj kev lag luam.

Hose Barb Size Range: Lub hose barb kawg nta muaj ntau yam ntawm cov kab uas hla sab nraud, npog qhov ntau thiab tsawg ntawm 1/4 nti mus rau 1 nti (kwv yees li 6mm–25mm). Qhov no ua kom muaj kev sib raug zoo nrog feem ntau ntawm cov hose hloov tau yooj yim tam sim no muaj nyob hauv khw, suav nrog PVC, roj hmab, braided, thiab PU hoses.

Material Compatibility: Muaj nyob rau hauv ob qib stainless hlau-304 thiab 316L- kom tau raws li ntau haiv neeg cov kev xav tau kev sib raug zoo. Qib 304 yog qhov tsim nyog rau cov dej thiab cov xov xwm me me, thaum Qib 316L yog qhov zoo tagnrho rau kev siv roj, roj av, thiab ib puag ncig corrosive heev.

Hla-Brand Interoperability: Tsim nyob rau hauv nruj raws li cov qauv thoob ntiaj teb, Shenchi qhov kev ua tau zoo 45-Degree Hexagonal Txiv neej Xov Luj Tshib Fittings tau hloov pauv nrog cov fittings los ntawm cov khoom lag luam loj hauv tebchaws thiab thoob ntiaj teb, tshem tawm cov kev txhawj xeeb txog kev sib raug zoo.

Vim li cas thiaj xaiv peb?

1. Tus nqi Hoobkas ncaj qha

Raws li cov chaw tsim khoom tseem ceeb, Shenchi tshem tawm cov neeg nruab nrab los muab cov neeg siv khoom luv nqi ntawm peb 45-Degree Hexagonal Txiv neej Xov Luj Fittings. Qhov no ua kom muaj txiaj ntsig zoo dua - xa tus nqi zoo dua rau qhov zoo sib npaug, lossis zoo dua rau tib pob nyiaj siv.

2. Kev Tswj Xyuas Zoo

Txij li lub sijhawm cov ntaub ntawv raw nkag mus rau peb lub chaw kom txog rau thaum cov khoom tiav lawm, txhua tus Tuam Tshoj-tsim 45-Degree Hexagonal Txiv neej Xov Luj Fitting tau dhau los ua ntau theem kev tshuaj xyuas. Peb siv cov kev kuaj xyuas nruj-nrog rau cov khoom siv spectroscopic tsom xam, xov Go/No-Go gauging, thiab kev ntsuas siab-kom lav cov khoom zoo sib xws.

3. Muaj peev xwm kho tau zoo

Shenchi txhawb ob qho ODM thiab OEM customization, tso cai rau peb los txiav txim siab qhov tshwj xeeb, qhov ntev, cov qauv xov, cov khoom siv, thiab cov khoom tiav kom tau raws li cov neeg siv khoom tshwj xeeb. Peb muab kev pabcuam dav dav, ib-nres kev pabcuam - los ntawm kev tsim qauv thiab pwm tsim los ntawm kev tsim khoom loj thiab xa khoom zaum kawg.
