L-hom Pagoda Dej Yeeb Nkab Connector

Hom khoom

Raws li ib tug kws tshaj lij Suav chaw tsim tshuaj paus ntawm L-Type Pagoda Dej Pipe Connectors, Shenchi muaj ob yam khoom tseem ceeb:

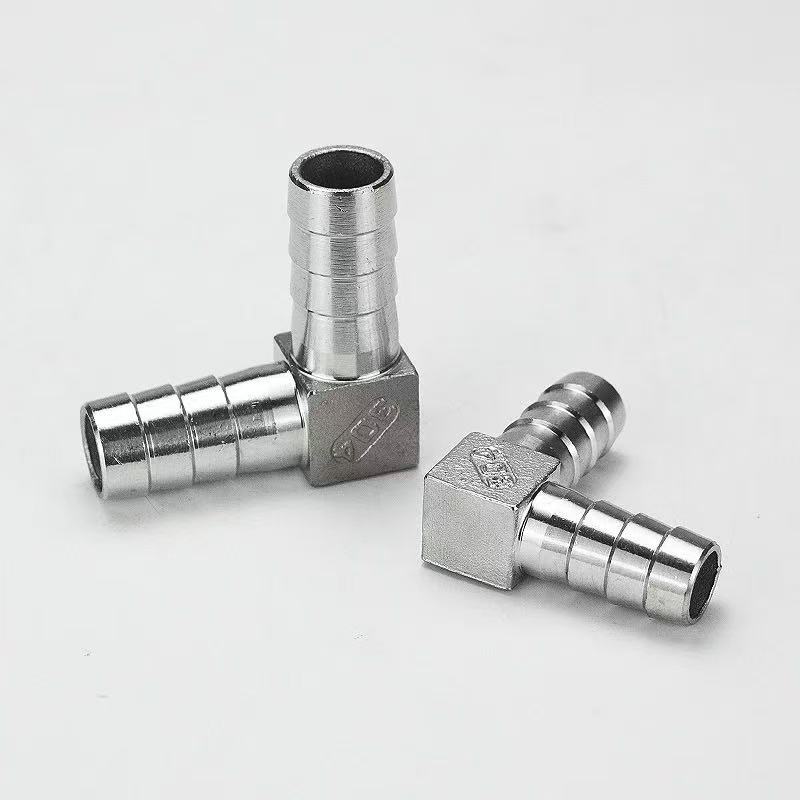

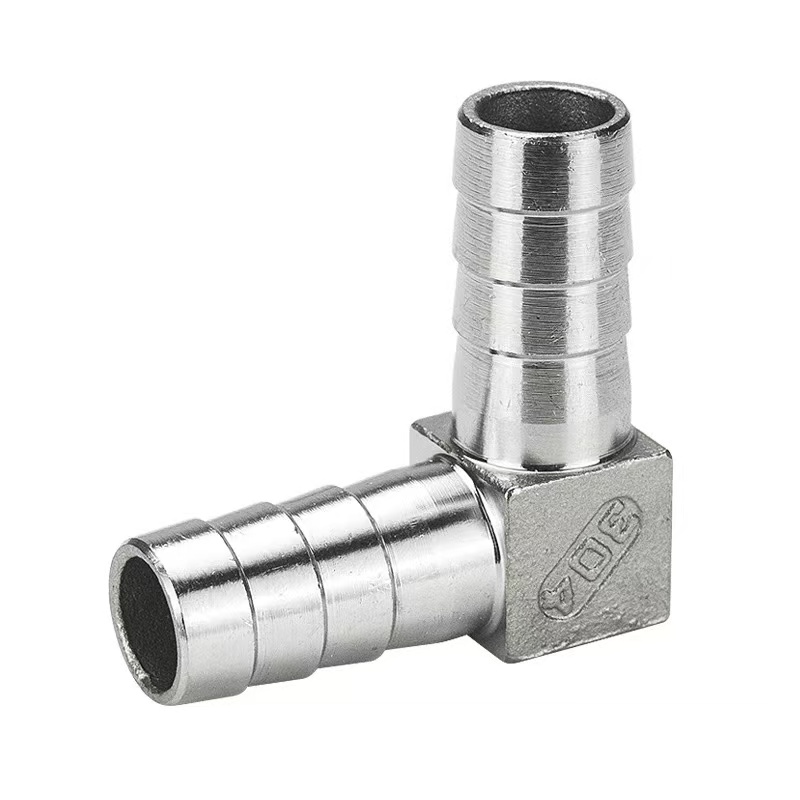

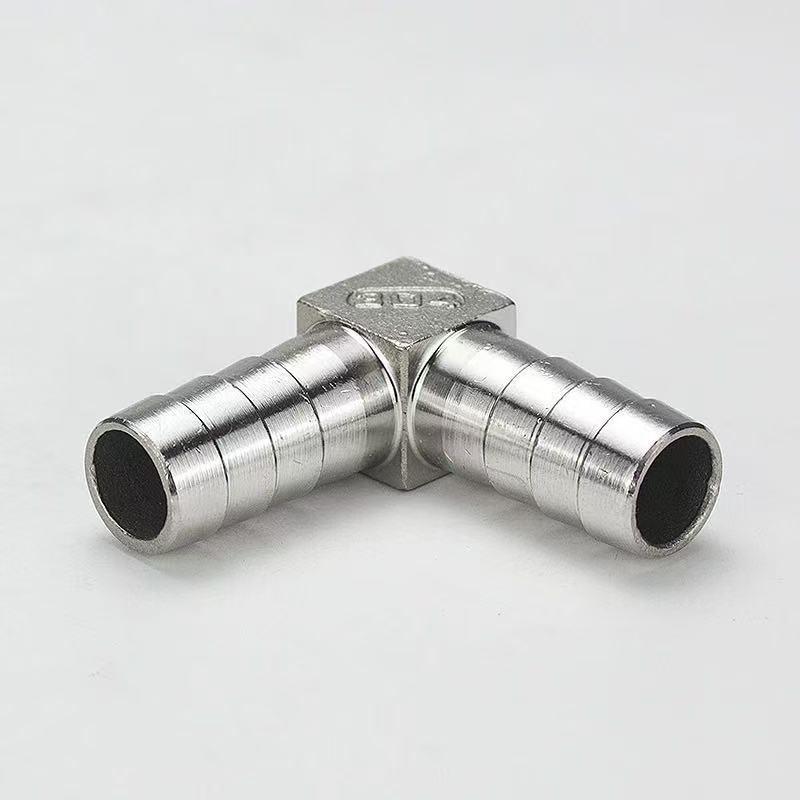

L-Type Pagoda Dej Pipe Connector: Ob qhov kawg feature ib lub tsev pheeb suab ntaub, tsim los tsim kom muaj 90-degree kev taw qhia kev sib txuas ntawm ob lub hoses hloov tau.

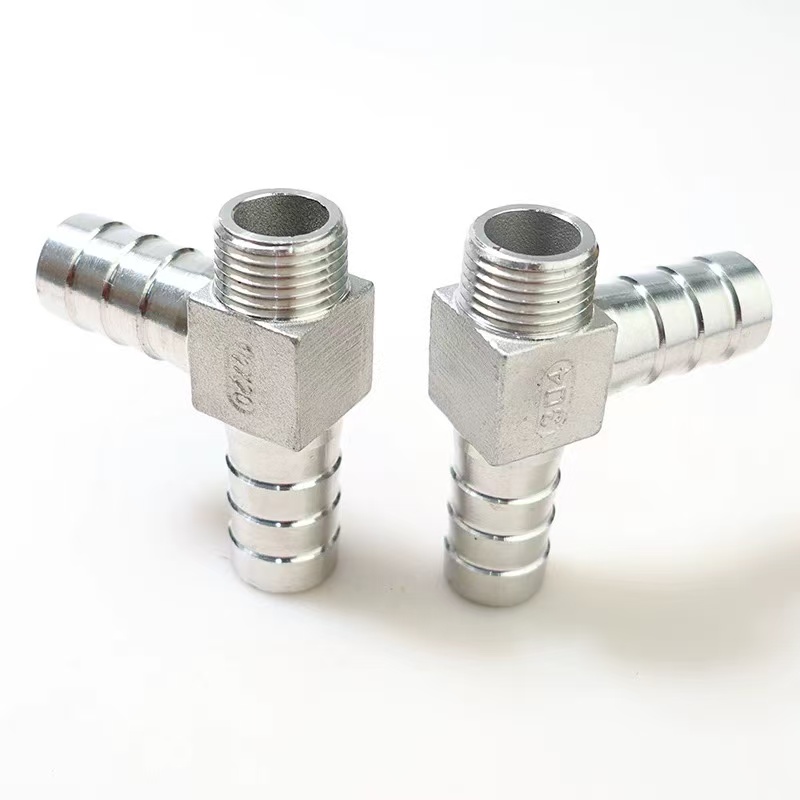

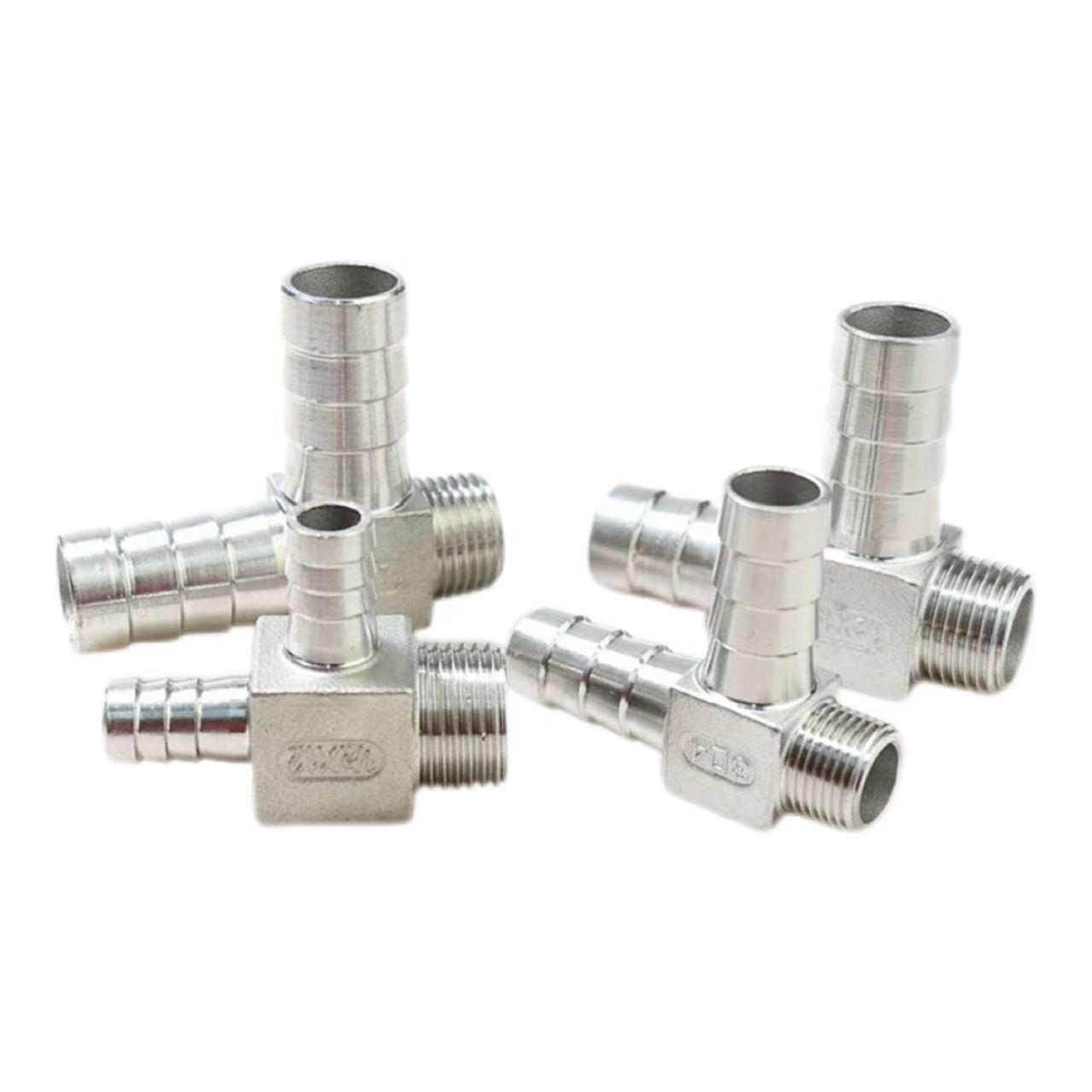

L-Type Txiv neej Threaded Pagoda Connector: Ib qho kawg muaj cov qauv ntoo barbed rau kev sib txuas rau lub hose hloov tau yooj yim, thaum lwm qhov kawg nta sab nraud (txiv neej) xov, tsim los tsim 90-degree kev taw qhia kev sib txuas ntawm lub hose thiab ib qho khoom siv nrog ib qho chaw hauv (poj niam) threaded chaw nres nkoj.

Ob hom no muaj 90-degree angled tsim nrog cov lus qhia zoo ib yam rau qhov barbed pagoda xaus. Lawv muaj nyob rau hauv kev xaiv ntawm cov ntaub ntawv: 304 stainless hlau, 316L stainless hlau, los yog tooj dag. Qhov sib txawv tseem ceeb yog nyob rau hauv txoj kev sib txuas: yav dhau los ua kom muaj kev sib txuas ncaj qha rau lub hose-rau-hose, thaum lub sij hawm tom kawg ua kom muaj kev hloov pauv ntawm cov hose thiab ib qho khoom siv, yog li muab cov kev xaiv hloov tau yooj yim kom haum rau ntau yam kev teeb tsa.

Dab tsi yog qhov txawv ntawm L-Type Pagoda Water Pipe Connector thiab L-Type Txiv neej Threaded Pagoda Connector?

Qhov sib txawv ntawm qhov tseem ceeb: Shenchi L-Type Pagoda Dej Pipe Connector nta ob-barb interface (ob qhov kawg yog barbed lub taub hau, tsim los txuas ncaj qha rau cov hoses hloov tau). L-Type Txiv neej Threaded Pagoda Connector nta ib qho xov sab nraud ntawm ib kawg thiab ib lub pas dej ua ke ntawm lwm qhov, tsim los rau kev sib txuas cov kav dej hloov mus rau cov yeeb nkab nruj lossis lub cev valve nrog cov xov sab hauv. Shenchi’s high-performance L-Type Pagoda Dej Pipe Connectors yog forged los ntawm tooj dag los yog 304/316L stainless hlau; lawv 90-degree txoj cai-angle qauv yog zoo tagnrho rau redirecting pipelines. Lub dual-barb tsim kom muaj kev ruaj ntseg tuav—tshwj xeeb tshaj yog thaum ua ke nrog hose clamps—los tiv thaiv detachment thiab to. Cov fittings no muaj kev tiv thaiv zoo rau lub siab, corrosion, thiab kev laus. 316L stainless hlau variant yog tshwj xeeb tshaj yog haum rau corrosive ib puag ncig, xws li cov dej hiav txwv los yog tshuaj ua. Yooj yim rau nruab, cov fittings no zoo tagnrho rau kev sib txuas ntawm cov kav dej qis hauv cov kav dej, pneumatic systems, thiab cov dej siv hauv kev lag luam, muab qhov tshwj xeeb ruaj khov thiab kav ntev.

Khoom Specifications

Cov lus qhia installation

Shenchi hom L-Type Pagoda Dej Pipe Connector, tsim rau cov qauv hauv tebchaws, yooj yim rau nruab. Ua raws li cov kauj ruam hauv qab no kom ntseeg tau tias muaj kev sib txuas:

Kauj Ruam 1: Hose Txiav

Siv ib tug tshwj xeeb hose cutter txiav qhov kawg ntawm lub hose square thiab tiaj tus, tsis txhob angled txiav los yog burrs, los xyuas kom meej ib tug zoo meej haum rau lub pas dej barbs. Rau braided los yog reinforced hoses, nws yog pom zoo kom siv ib tug kub-txiav txoj kev los khi cov npoo thiab tiv thaiv fraying.

Kauj Ruam 2: Pagoda Xaus Kev Sib Txuas

Ntxig lub hose vertically mus rau lub pagoda kawg kom txog thaum lub ntsej muag hose ua rau kev sib cuag nrog lub hauv paus ntawm lub pagoda haum. Cov pav ca barbs muaj cov qauv tsim uas tsim ntau lub nplhaib sib khi thaum lub hose tso. Rau cov ntawv thov kev kub siab, ruaj ntseg kev sib txuas siv stainless hlau hose clamp los yog caij nplooj ntoos hlav clip; lub clamp yuav tsum nyob nruab nrab ntawm lub thib ob thiab thib peb lub pas dej barbs.

Kauj Ruam 3: Threaded End Txuas

Xaiv txoj kev sib khi uas tsim nyog rau cov xov kawg raws li nws cov kev qhia tshwj xeeb: G-threads (kab yeeb nkab threads) yuav tsum muaj roj hmab lossis tooj liab gasket rau sealing; NPT los yog R-threads (tapered yeeb nkab threads) yuav tsum qhwv 3-5 lem ntawm PTFE xov foob daim kab xev ua ntej zawm. Thaum zawm, siv cov ciaj ntswj mus rau lub cev hexagonal ntawm qhov haum kom tiv thaiv lub zog ntawm kev xa mus rau qhov chaw txuas hose.

Kauj Ruam 4: Kev Ntsuas Siab

Tom qab ua tiav kev teeb tsa, ua qhov kev ntsuas siab zoo li qub ntawm 1.5 npaug ntawm qhov system ua haujlwm siab. Yog tias tsis muaj qhov xau tau pom tom qab tswj qhov siab no rau 3 feeb, lub rooj sib txoos tau npaj siv. Cov txheej txheem kev teeb tsa rau qhov sib xws L-Type Txiv neej Threaded Pagoda Connector nyob rau hauv cov koob no zoo ib yam - txawv ntawm cov xov hom - tso cai rau kev xaiv hloov tau raws li cov kev xav tau tshwj xeeb.

Daim ntawv thov teb

1. Cov khoom siv kho dej

L-Type Pagoda Water Pipe Connector yog tsim los rau 90-degree kev taw qhia kev sib txuas ntawm PE thiab PU tubing hauv dej purifiers, dej softeners, thiab RO (Rov qab Osmosis). Thaum tsim los ntawm 316L stainless hlau, nws ua tau raws li cov khoom noj khoom haus huv. Ib qho ntxiv L-Type Txiv neej Threaded Pagoda Connector nyob rau hauv tib lub series yog muaj rau cov kev siv qhov twg cov khoom siv interface nta ib sab hauv (poj niam) xov.

2. Pneumatic Automation Systems

Siv rau pneumatic tubing routing hauv cua compressors, pneumatic valve manifolds, thiab automated los ua ke kab. Nws cov qauv L-zoo li khaws cia cov khoom siv sab hauv, thaum sib raug zoo nrog kev sib txuas ceev ceev ua kom yooj yim sib dhos, disassembly, thiab tu.

3. Cov khoom siv huv huv thiab cov khoom siv hauv tsev

Txuas cov dej nkag hoses rau cov chav dej ntse, tshuab ntxhua khaub ncaws, tshuab ntxhua khaub ncaws, thiab cov khoom siv zoo sib xws. Thaum tsim los ntawm tooj dag, L-Type Pagoda Dej Pipe Connector muaj cov thermal conductivity zoo heev, ua rau nws haum rau cov kab dej kub. L-Type Txiv neej Threaded Pagoda Connector yog tsim los ua kom haum rau ntau yam ntawm cov qauv kev sib txuas uas pom hauv cov khoom siv txawv teb chaws.

4. Kev lag luam cua txias thiab Lubrication Systems

Siv rau hauv tshuab cuab yeej cua txias kab thiab hydraulic lubrication tshuab. Kev tsim kho stainless hlau muab kev tiv thaiv corrosion zoo dua, ua kom muaj kev ntseeg tau zoo hauv kev xav tau ib puag ncig uas muaj cov roj pos huab, txiav cov kua dej, thiab cov haujlwm zoo sib xws.
