Txo Cov Poj Niam Threaded Luj Tshib

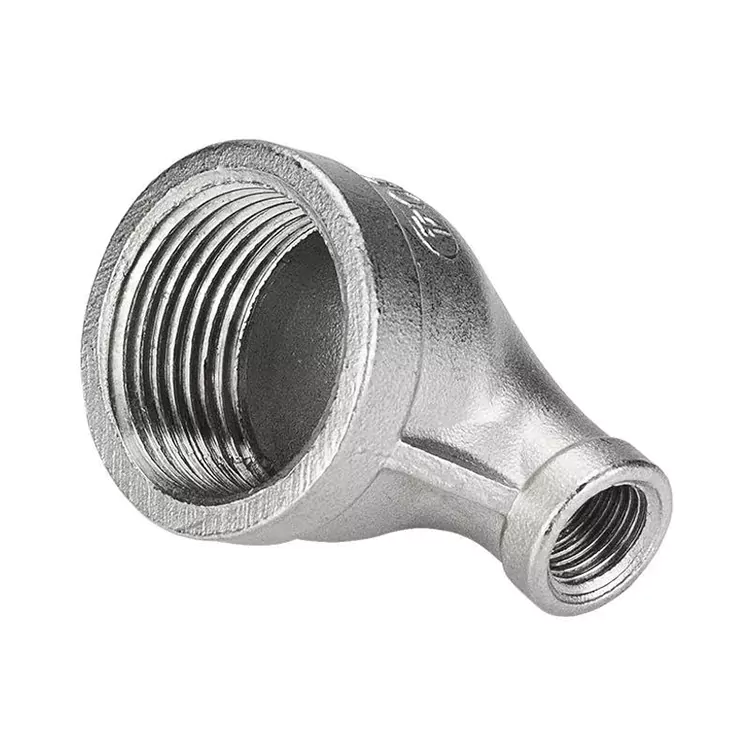

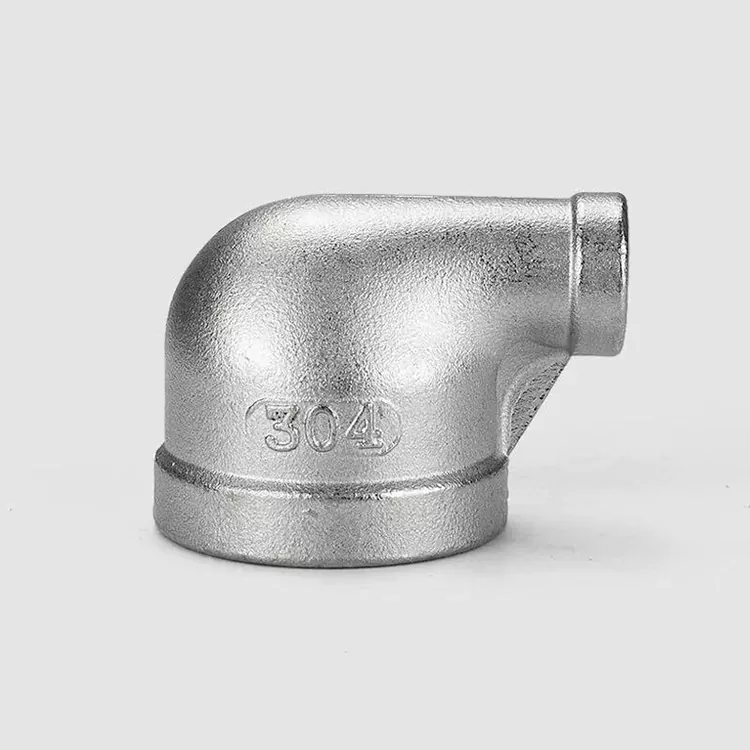

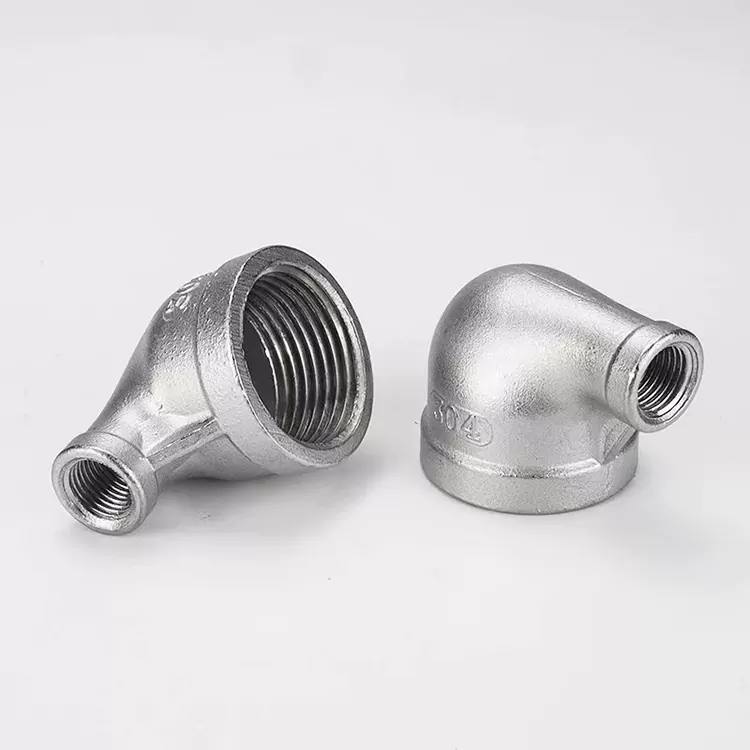

Qhov Txo Cov Poj Niam Threaded Luj Tshib yog 90 ° kev taw qhia cov yeeb nkab haum nrog cov xov sib txawv ntawm ob qhov kawg. Shenchi yog cov chaw tsim khoom hauv Tuam Tshoj thiab cov chaw tsim khoom lag luam wholesale ntawm kev txo cov poj niam threaded luj tshib, kuj muab kev sib txuam txo cov txiv neej threaded luj tshib. Nws koom ua ke kev hloov pauv thiab txo kev ua haujlwm hauv ib lub cev, muaj cov ntsiab lus txuas tsawg dua, cov poj niam precision threads, thiab cov cuab yeej-dawb threaded installation, muab cov nqi-txuag, khoom siv ncaj qha, thiab xa khoom sai.
Khoom zoo
Shenchi Factory's check Txo Cov Poj Niam Threaded Luj tshib ua ke ob qho tib si "txo txoj kab uas hla" thiab "txoj kev hloov pauv" rau hauv ib feem. Nws txo qhov zoo yog xav txog plaub yam:
1. Cov ntsiab lus txuas tsawg dua:
Cov txheej txheem ib txwm xav tau "lub luj tshib sib npaug + txo qis" ua ke. Cov khoom no hloov lawv nrog ib qho haum, txo cov ntsiab lus sib txuas los ntawm 50% thiab txo qis kev pheej hmoo.
2. Chaw-Txuag Tsim:
Cov qauv kev sib xyaw ua ke ntau dua thiab siv qhov chaw tsawg dua, ua rau nws zoo tagnrho rau cov kav dej nqaim, qab nthab, thiab qhov chaw kaw cia.
3. Higher Installation Efficiency:
Ib qho kev teeb tsa ua tiav ob qho tib si tig thiab txo cov haujlwm ib zaug, txo lub sijhawm teeb tsa los ntawm kwv yees li 40% thiab txhim kho kev tsim kho.
4. Tus nqi qis dua:
Ib qho haum hloov pauv ob yam khoom, txo SKU qhov nyuaj, cov khoom lag luam siab, thiab tag nrho cov nqi yuav khoom.
Khoom Parameters
|
Khoom npe: Txo Cov Poj Niam Threaded Luj Tshib |
Qhov ntau thiab tsawg: (1/8 "-4") DN6-DN100 |
|
Nominal Siab: PN16 |
Khoom siv lub cev: tooj dag, SUS304, SUS316L |
|
Cov Qauv: ANSI, BS, DIN, ISO, JIS |
Xov: NPT, BSP, BSPT, DIN, thiab lwm yam. |
|
Cov khoom siv hlau sab hauv: Brass, SUS304, SUS316L |
Nruab nrab kub: siab, qis, nruab nrab, ambient |
|
Hom kev ua haujlwm: Phau ntawv |
Seals: EPDM |
|
Kev sib txuas hom: Threaded Connection |
Haum rau: Dej, Cua, Roj, Roj, Kua, thiab lwm yam. |
|
Qhov chaw ntawm Keeb Kwm: Suav teb |
Qauv: Ua cov qauv dawb |
Kub Kub + Siab Siab Ua Haujlwm
Shenchi Txo Cov Poj Niam Threaded Luj Tshib qhia tau zoo heev hauv kev ua haujlwm hnyav:
High Temperature Resistance:
Ua los ntawm 304/316L stainless hlau, kev khiav hauj lwm kub ntawm -20 ° C mus rau 120 ° C, haum rau chav, kub roj systems, thiab muaj cua sov daim ntaub ntawv. Brass versions ua haujlwm ntawm -20 ° C thiab 110 ° C rau cov xwm txheej txheem.
High Pressure Capacity:
Stainless hlau versions txhawb nqa mus txog PN25 (kwv yees 2.5MPa), thaum tooj dag versions txhawb PN16-PN25, ua tau raws li qhov yuav tsum tau ua ntawm hydraulic systems, tiv thaiv hluav taws, thiab roj pipelines.
Khoom siv zog:
316L stainless hlau nrog molybdenum ntxiv muab zoo heev corrosion kuj nyob rau hauv kub, siab siab, thiab chloride ib puag ncig.
Reinforced Phab Ntsa Thickness:
Optimized los ntawm cov qauv kev tsom xam kom muaj kev ruaj ntseg nyob rau hauv siab pulses.
Thermal Shock Resistance:
Ib-thooj forged qauv tsis muaj welds tiv thaiv kev tawg nyob rau hauv kev hloov pauv kub ceev.
Txhua qhov ruaj khov Txo Cov Poj Niam Threaded Luj Tshib raug cuam tshuam los ntawm kev kub siab thiab thermal aging kev ntsuam xyuas kom muaj kev ruaj ntseg mus ntev hauv qhov xav tau ib puag ncig.
Leak-Free Sealing Performance
Shenchi ua kom ntseeg tau, tsis muaj kev ua haujlwm los ntawm kev ua haujlwm zoo thiab kev tswj xyuas nruj:
Precision Poj Niam Xov:
Ua raws li NPT lossis BSPT cov qauv nrog cov neeg raug siab hauv taper thiab xov profile rau nruj kev koom tes nrog txiv neej-xov fittings.
Sealing Mechanism:
Tapered xov compression ua ke nrog PTFE daim kab xev los yog xov sealant ua ib tug puas sealing qauv.
100% Cua Tightness Test:
Txhua chav tsev raug kuaj tag nrho ua ntej xa khoom kom ntseeg tau tias xoom xau.
High Pressure Sealing Stability:
Ua kom ntseeg tau raws li PN16-PN40 qib siab rau kev siv roj, kua, thiab roj.
Reusable Kev Sib Txuas:
Threaded tsim tso cai rov sib dhos thiab disassembly nrog kev tuav sealing kev ua tau zoo tom qab rov ua dua.
Tsis muaj Welding Defects:
Ib-thooj forged qauv tshem tawm cov porosity thiab cracking txaus ntshai txuam nrog welded pob qij txha.
Txhim khu kev sib khi ua tau zoo ua rau Shenchi Txo Cov Poj Niam Threaded Luj Tshib siv dav hauv kev tiv thaiv hluav taws, faib roj, thiab cov tshuab hydraulic uas xoom xau yog qhov tseem ceeb.
