Bulkhead Barbed Haum

Shenchi qhia txog qhov zoo ntawm Bulkhead Barbed Fittings, tshwj xeeb yog tsim los rau kev xa cov hoses los ntawm cov khoom vaj huam sib luag thaum muab kev sib khi ruaj khov. Ua los ntawm tooj dag, SUS304, thiab SUS316L stainless hlau, cov fittings no muaj zog corrosion kuj thiab haum rau ntau yam kev ua haujlwm.

Cov qauv khoom

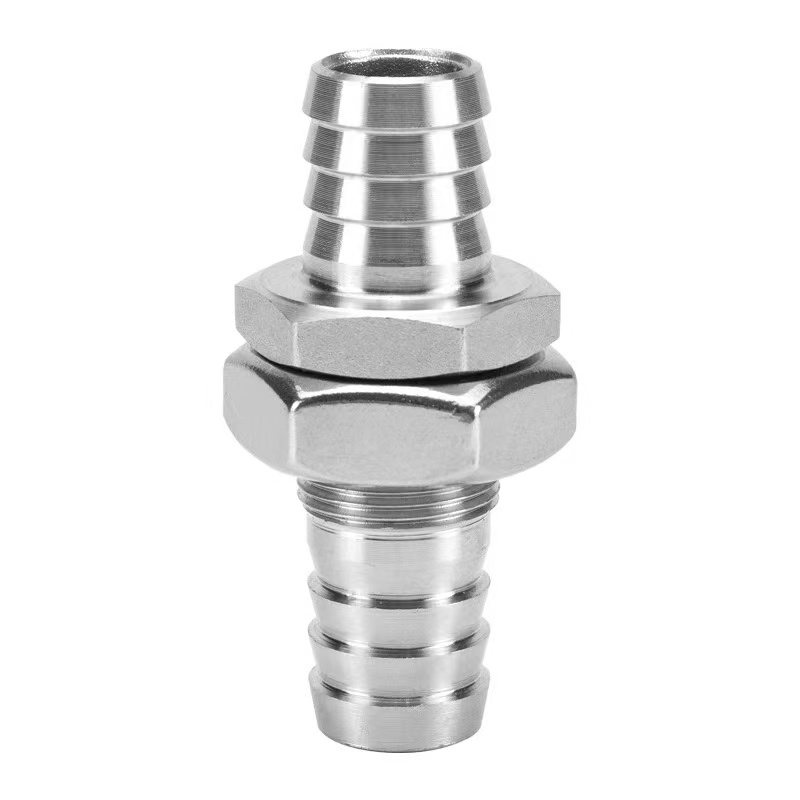

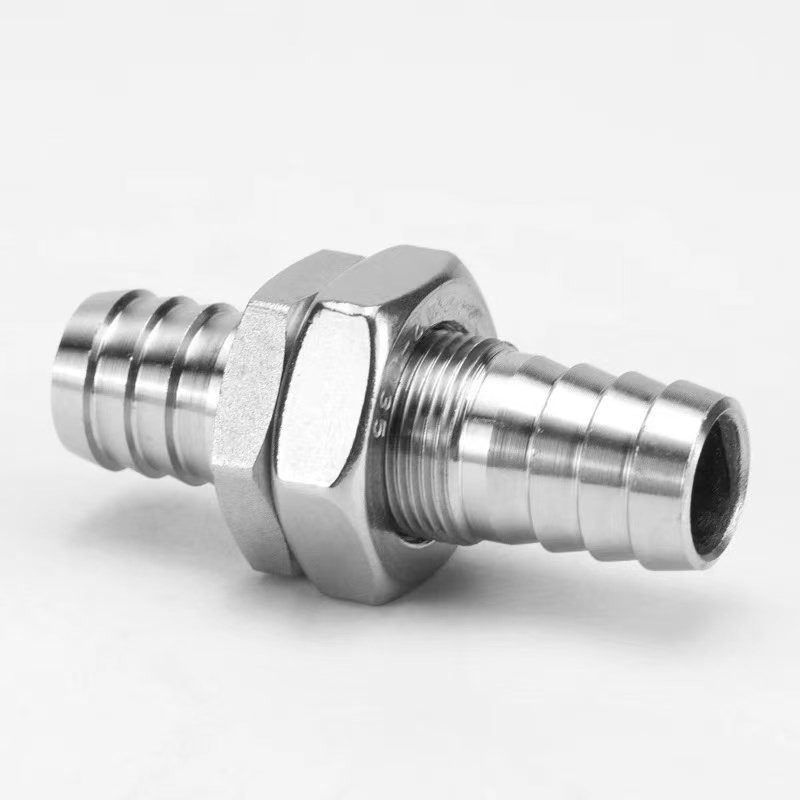

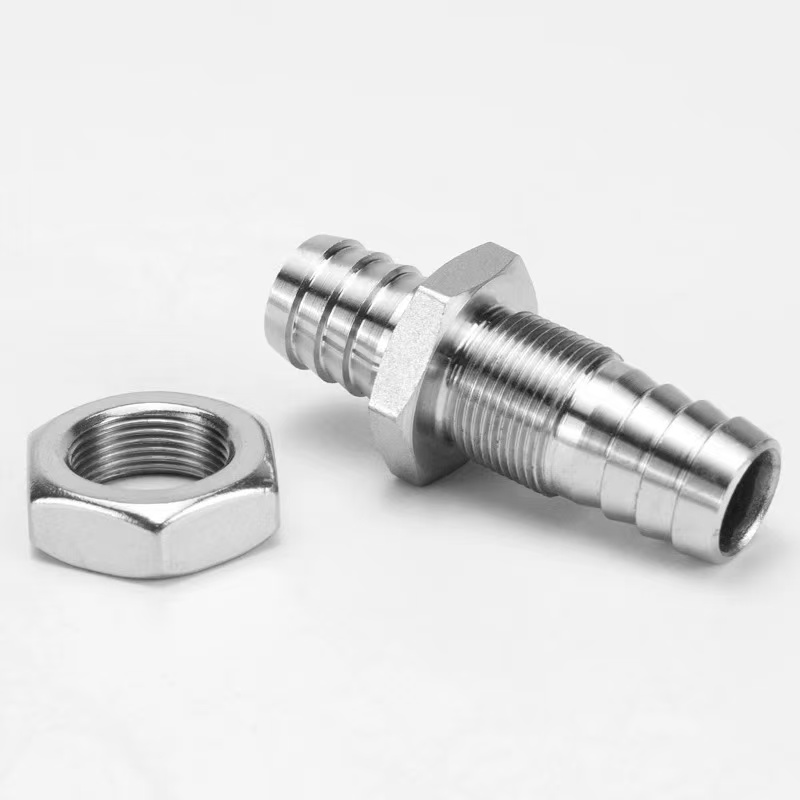

Cov qauv ntawm Bulkhead Barbed Fitting muaj xws li bulkhead threads, ib tug xauv txiv ntseej, thiab barbed hose txuas. Thaum lub sij hawm installation, tsuas yog ib lub vaj huam sib luag qhov yuav tsum tau; zawm cov txiv ntoo ua tiav cov txheej txheem kho thiab sib khi.

Qhov kawg barbed nta ib qho kev tiv thaiv zawv zawg tsim, kom muaj kev ruaj ntseg kev sib txuas thaum siv nrog hose clamp. Cov fittings no tau siv dav hauv cov txee tswj, cov khoom siv kho dej, cov cuab yeej kho mob, thiab lwm yam kev lag luam.

Khoom Specifications

Cov yam ntxwv zoo

Bulkhead Barbed Fitting yog cov yeeb nkab haum tshwj xeeb uas tsim los rau kev xa cov hoses los ntawm cov khoom siv vaj huam sib luag, cov ntaub thaiv npog, lossis cov bulkheads thaum muab kev sib khi ruaj khov. Nws lub ntsiab qauv muaj xws li ib tug bulkhead xov seem, ib tug xauv lub txiv ntseej, ib tug sealing gasket, thiab ib tug barbed hose kev twb kev txuas. Thaum lub sij hawm installation, tsuas yog ib lub qhov ntawm cov kab sib txuas yuav tsum tau ua rau ntawm lub vaj huam sib luag. Cov xov seem ntawm qhov haum yog dhau los ntawm lub qhov, thiab cov txiv ntoo raug nruj los ntawm sab nraud kom tiav cov txheej txheem kho thiab sib khi.

1. Bulkhead Fixing Structure:Cov xov seem ntev yog yoog rau cov vaj huam sib luag thicknesses. Thaum lub ntsuas phoo xauv yog nruj, nws tsim ib qho kev txhim kho nruj nrog lub vaj huam sib luag, kom ntseeg tau tias qhov haum tseem ruaj ntseg txawm tias nyob rau sab nraud rub tawm.

2. Barbed Hose Connection:Ib los yog ob sab ntawm lub vaj huam sib luag feature barbed tapered hniav rau inserting lub hose thiab tsim ib tug kaw kev twb kev txuas nrog ib tug hose clamp. Qhov kawg barbed txais yuav ob npaug los tiv thaiv plam groove tsim, muab ntau dua rub tawm tsis kam tshaj li cov khoom siv zoo tib yam.

3. Sealing System:Roj hmab gaskets lossis O-rings yog muab rau ntawm ob sab ntawm lub vaj huam sib luag. Thaum cov txiv ntseej yog nruj, lub sealing gasket yog compressed, ua tiav watertight thiab plua plav-nruj sealing ntawm lub vaj huam sib luag qhib, nrog rau kev tiv thaiv ntsuas txog IP65 lossis siab dua.

Txoj Kev Txhim Kho

Shenchi's check Bulkhead Barbed Fittings yog ib qho yooj yim rau nruab. Kev ruaj ntseg thiab kaw kev sib txuas tuaj yeem ua tiav hauv tsuas yog rau theem:

Kauj Ruam 1: Kev Npaj Lub Vaj Huam Sib Luag

Ua ib lub qhov sib thooj ntawm lub vaj huam sib luag raws li sab nraud ntawm cov xov seem. Xyuas kom lub qhov ntug yog du thiab burr-dawb kom tsis txhob ua puas lub sealing gasket.

Kauj Ruam 2: Nruab lub Sealing Gasket

Xaub lub EPDM sealing gasket rau ntawm cov xov, nias nws tawm tsam lub hauv paus haum. Yog tias yuav tsum tau sealing ntawm ob sab ntawm lub vaj huam sib luag, tso ib lub gasket rau txhua sab.

Kauj ruam 3: Ntxig los ntawm lub vaj huam sib luag

Ntxig cov xov seem rau hauv lub qhov los ntawm ib sab ntawm lub vaj huam sib luag, kom ntseeg tau tias lub hauv paus haum haum rau lub vaj huam sib luag nrog lub sealing gasket nyob nruab nrab.

Kauj Ruam 4: Tighten lub ntsuas phoo

Screw lub ntsuas phoo rau ntawm cov xov xov los ntawm sab nraud ntawm lub vaj huam sib luag, thiab maj mam zawm nws nrog ib tug ciaj ntswj. Pom zoo torque: 5-8 N·m rau tooj dag thiab 8-12 N·m rau stainless hlau. Khaws lub cev haum nyob ruaj ruaj thaum lub sijhawm nruj.

Kauj Ruam 5: Txuas lub Hose

Xaiv ib qho kev qhia tshwj xeeb uas qhov barb sab nraud yog 0.5-1 mm loj dua lub hose puab txoj kab uas hla. Ntxig lub hose vertically mus rau qhov kawg barbed kom txog thaum nws ncav cuag lub hauv paus. Rau cov ntawv thov siab, siv lub stainless hlau hose clamp thiab fasten nws ntawm qhov thib ob thiab thib peb barbs.

Kauj Ruam 6: Seal Integrity Test

Ua qhov kev ntsuas siab zoo li qub ntawm 1.5 npaug ntawm kev ua haujlwm siab. Yog tias tsis muaj qhov xau rau peb feeb, lub installation tsim nyog.
